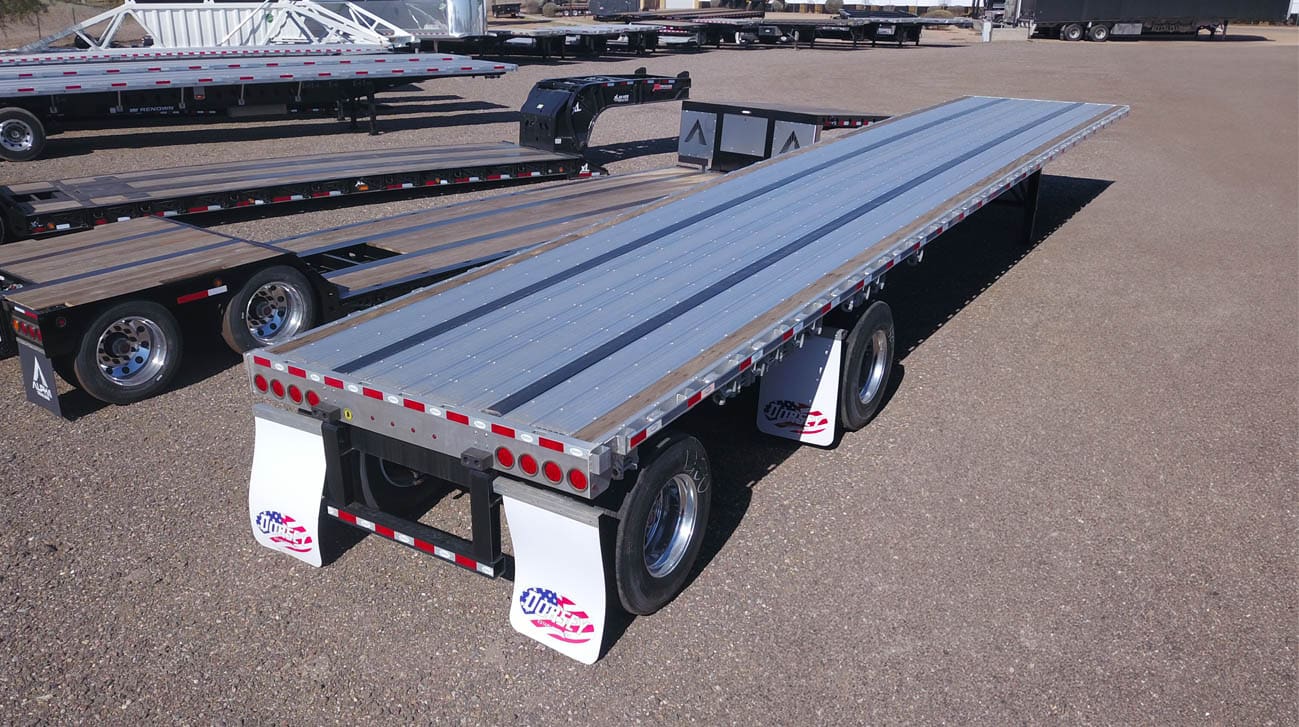

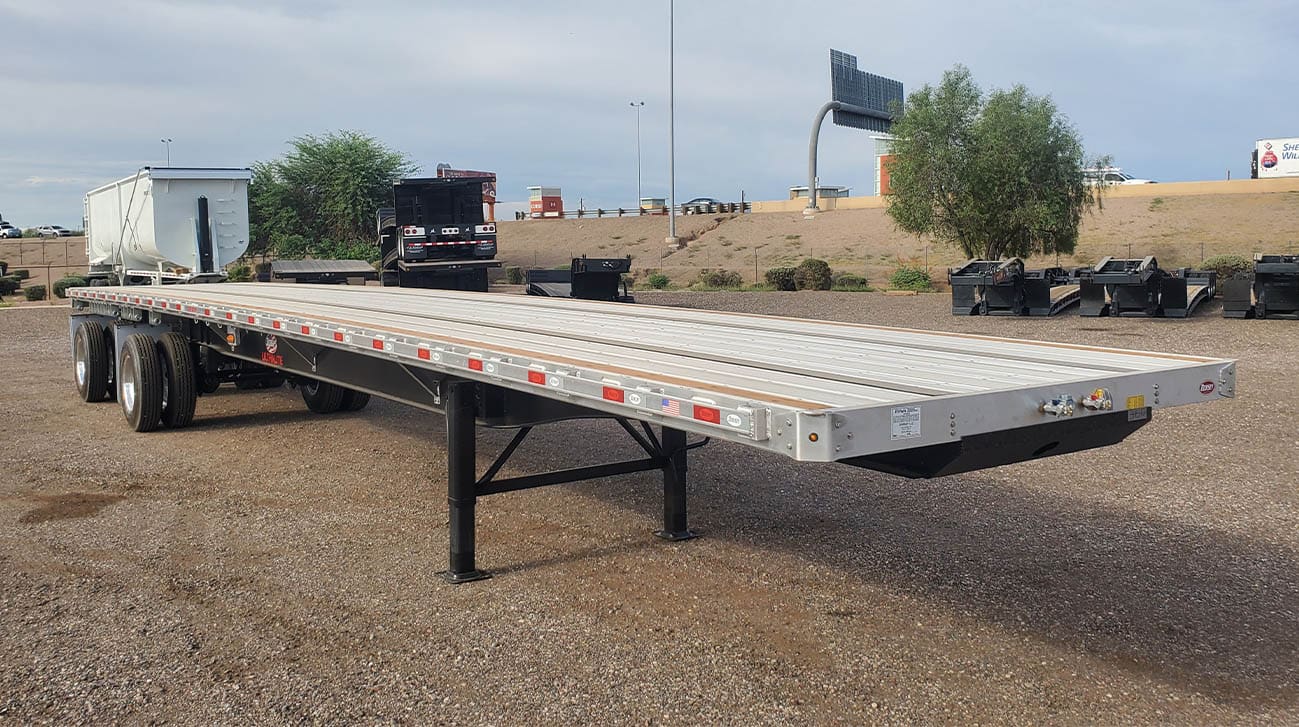

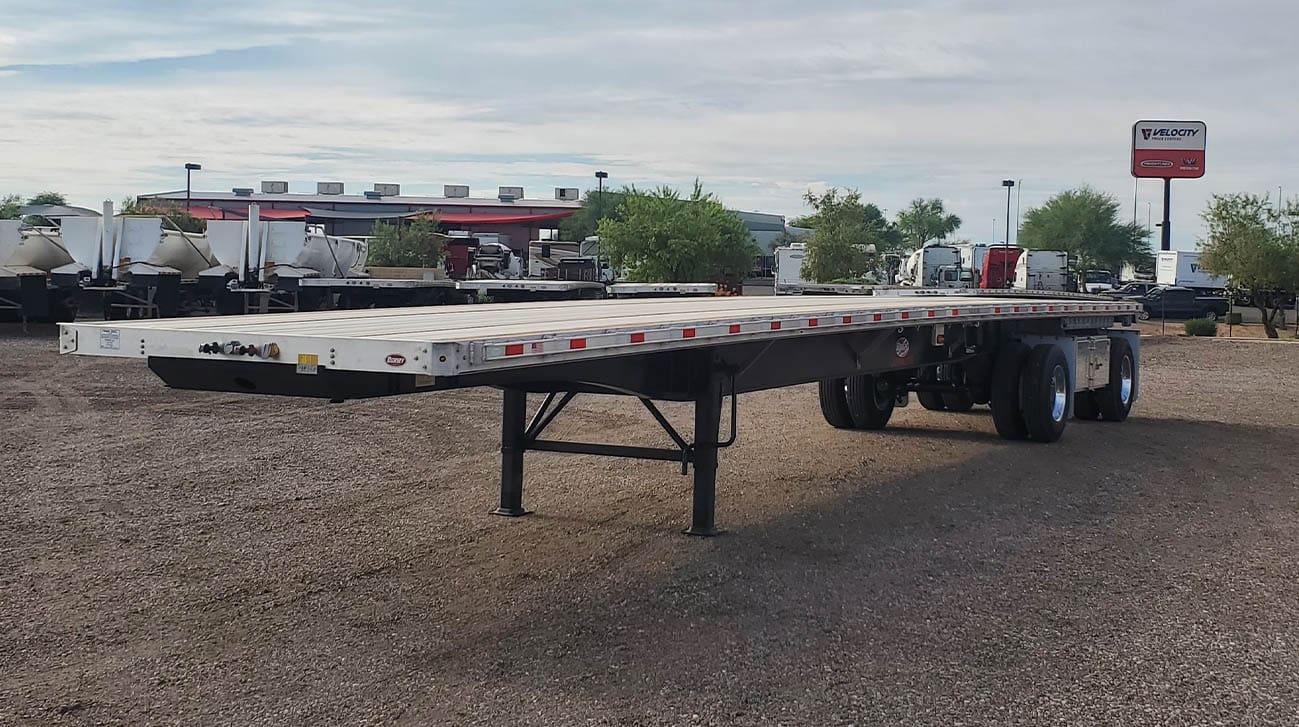

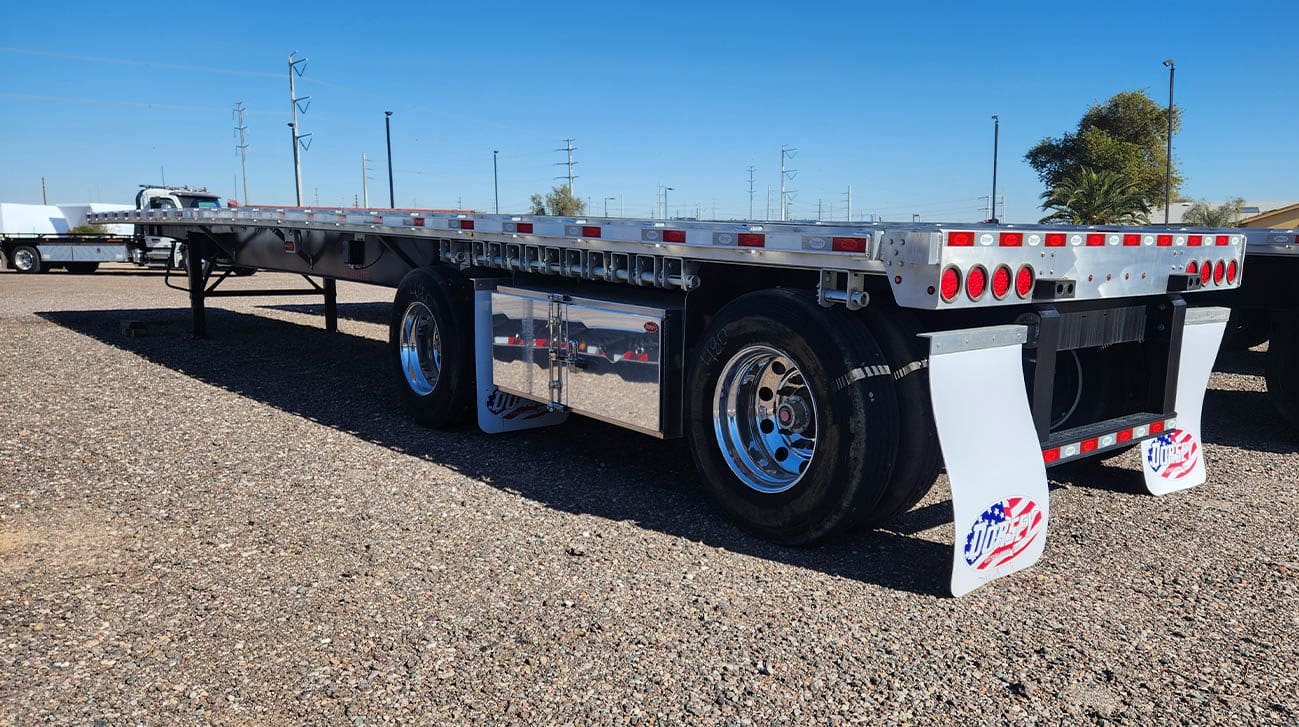

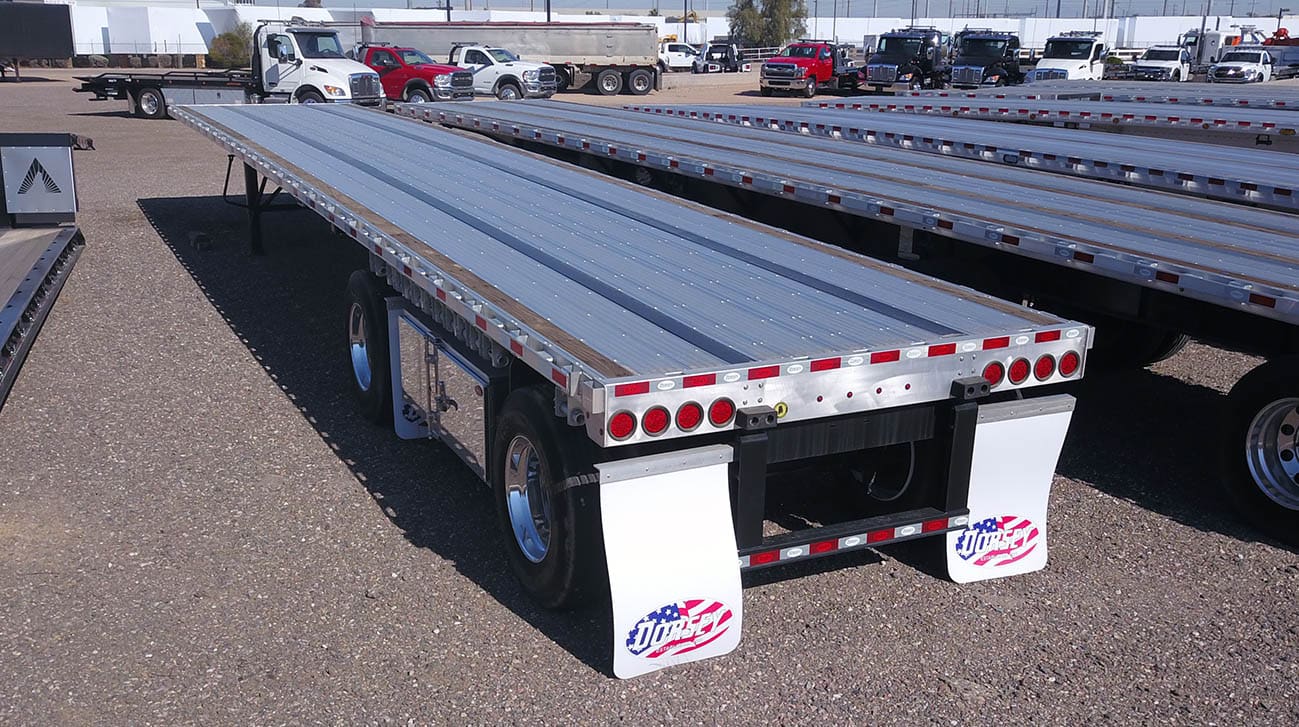

2021 Dorsey Combo Flatbed

FLATBED TRAILER DIMENSIONS

• Length: 48 feet
• Width: 102 inches
• Capacity: 80,000 lb GVWR (50,000 lb in 10′ span)

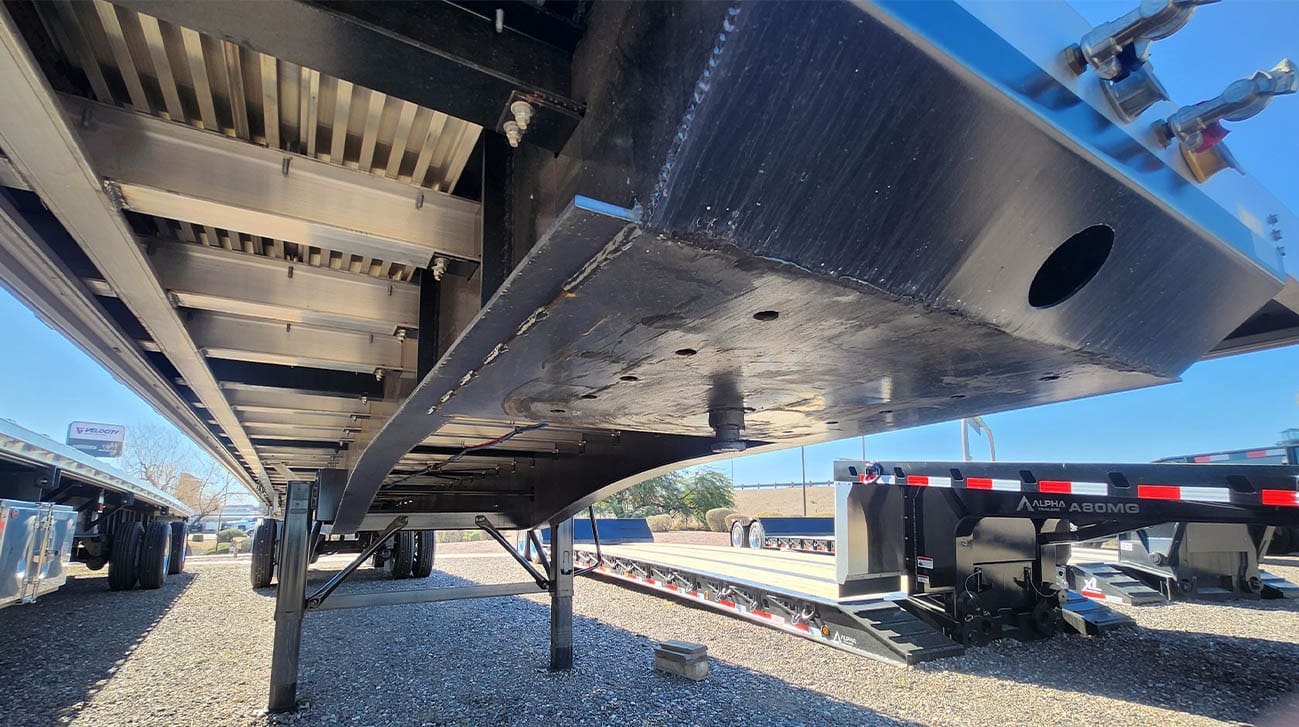

COUPLING

• King pin setting: 30″, tapered front
• Upper coupler plate: 1/4″
• Upper coupler height: 48″

TRAILER CONSTRUCTION

• Combo flatbed trailer
• Front skirt: steel
• Rear skirt: aluminum

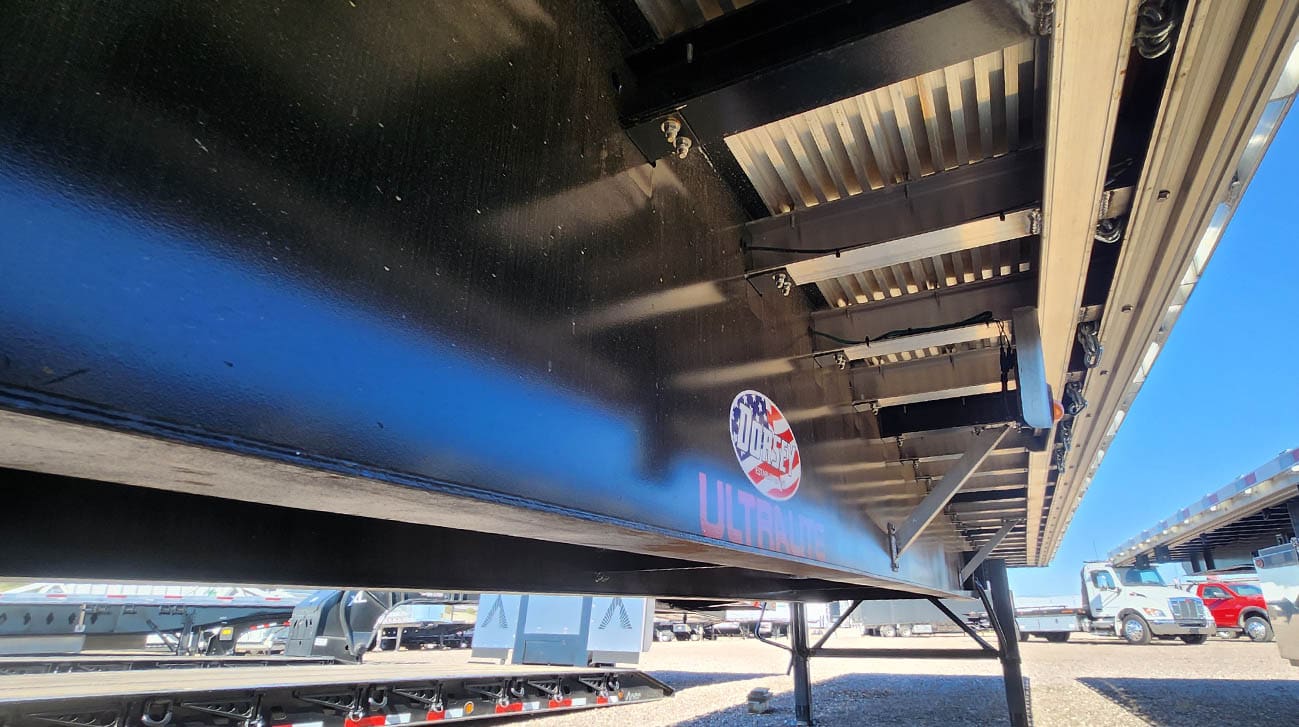

• Main frame: 26″ fab – PreCamb I-beams. 44″ frame centers
• Side rails: 6″ aluminum, extruded w/ double L track

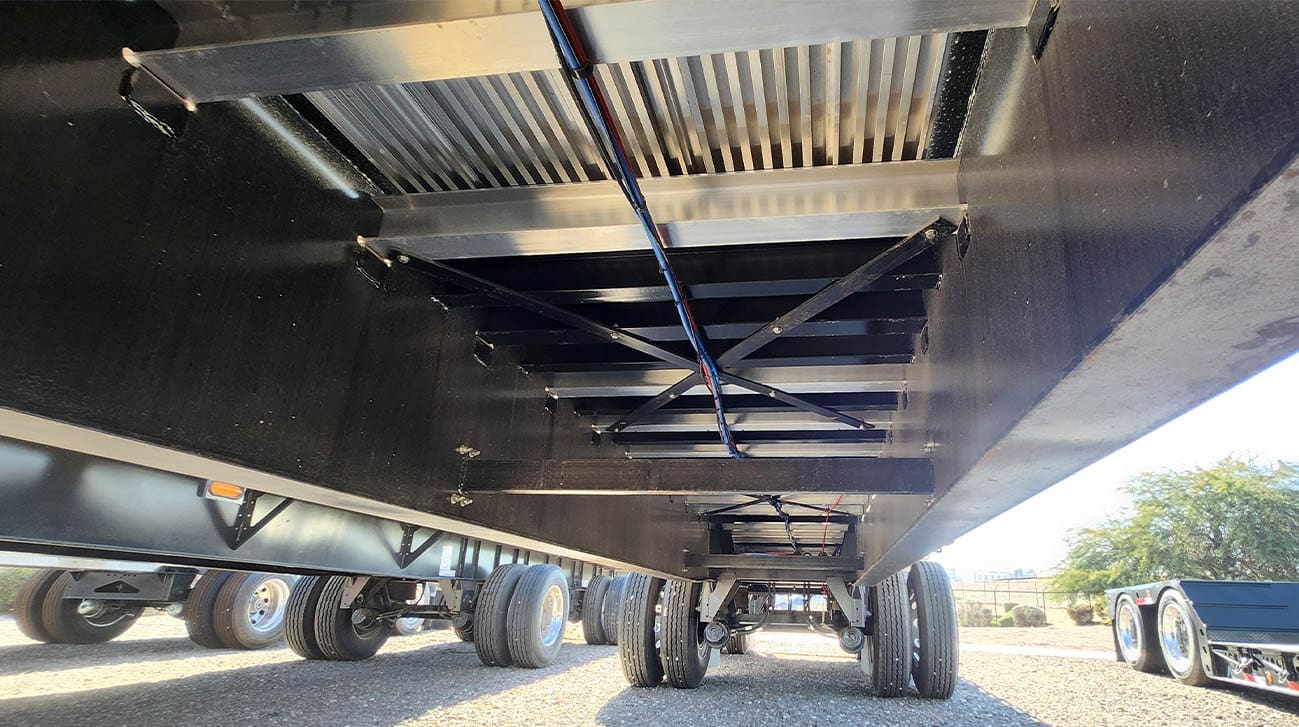

• Floor sills: 4″ aluminum I-beam, 12″ O.C. package

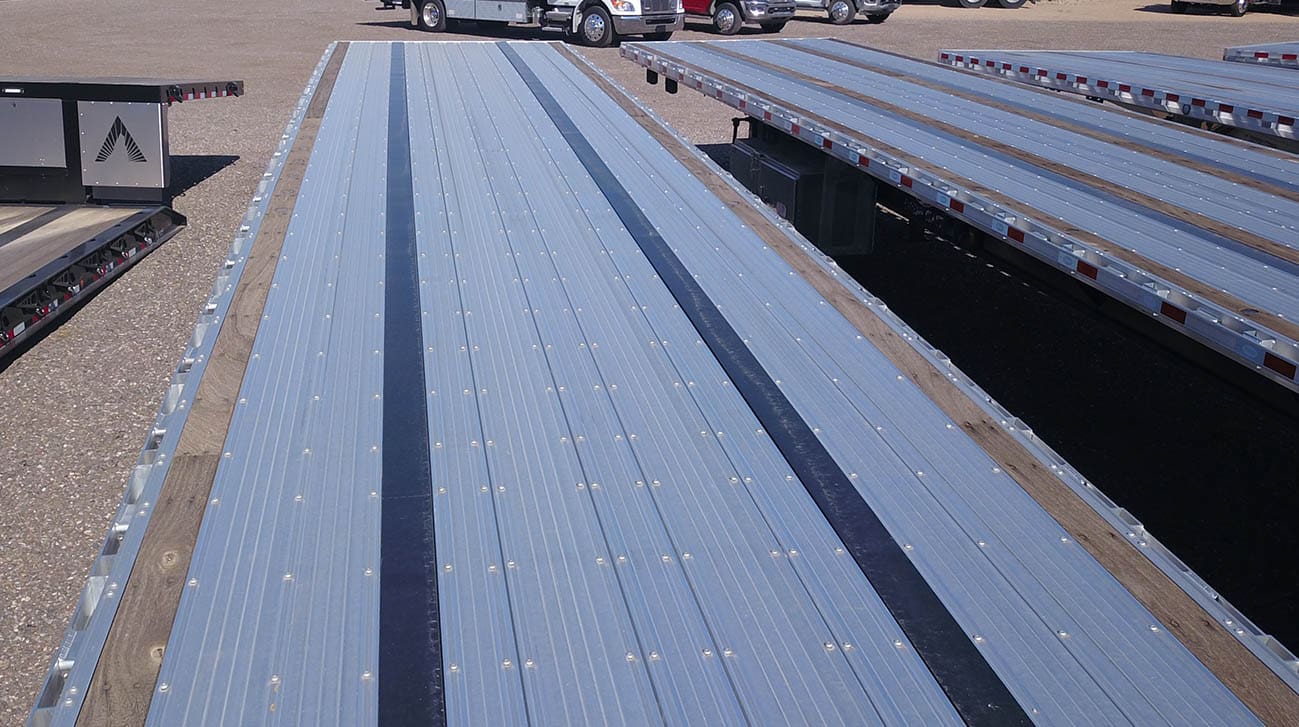

• Floor decking: 1 1/8″ HD aluminum with 4 nailer boards
• Dock bumpers: rubber inboard

COIL PACKAGE

This Dorsey flatbed trailer has been reinforced for hauling steel coils.

• Coil package: Single coil placement. 5 extra stud sills – ctr on trailer

LANDING GEAR

• Two-speed

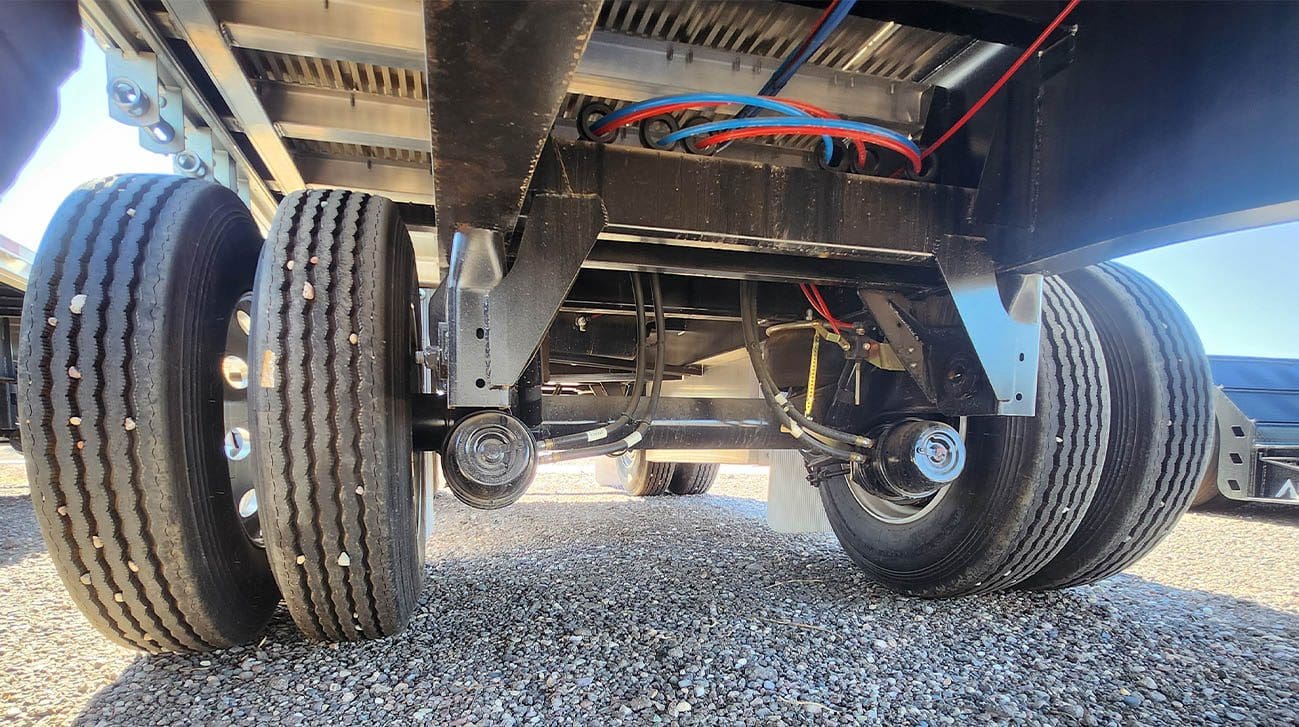

SUSPENSION & AXLES

• Hendrickson Intraax 23k air ride tandem axle suspension system
• Tandem axle flatbed trailer, 10′ 2″ wide spread

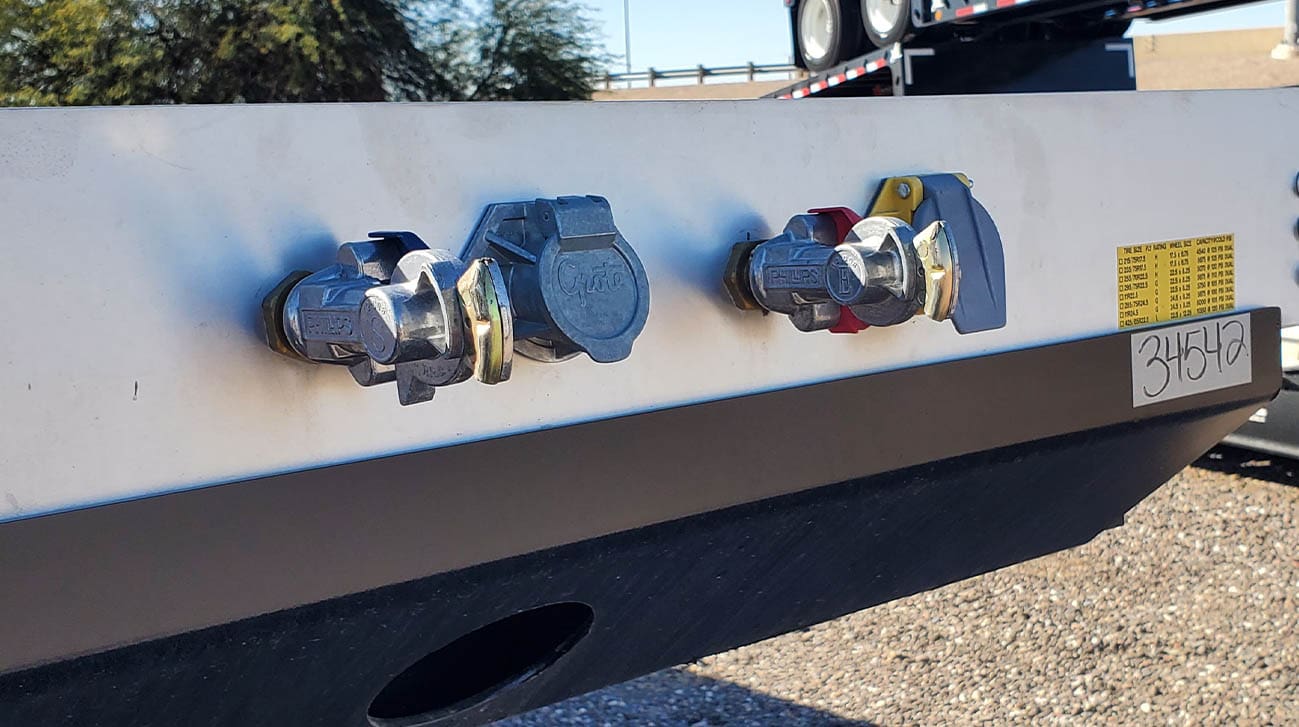

• Dump valve: Elect., wired thru aux 7-way plug @ front – dump rear axle

CARGO CONTROL

This combo flatbed trailer is equipped with winch tracks on each side of the trailer.  12 winches included.

• Winch tracks: Double L aluminum – extruded siderail C/S & R/S – both sides
• Winches: 12 double L (6 per side)
• Stake pockets: 24″ O.C. sides and 4 across front, 5 across rear

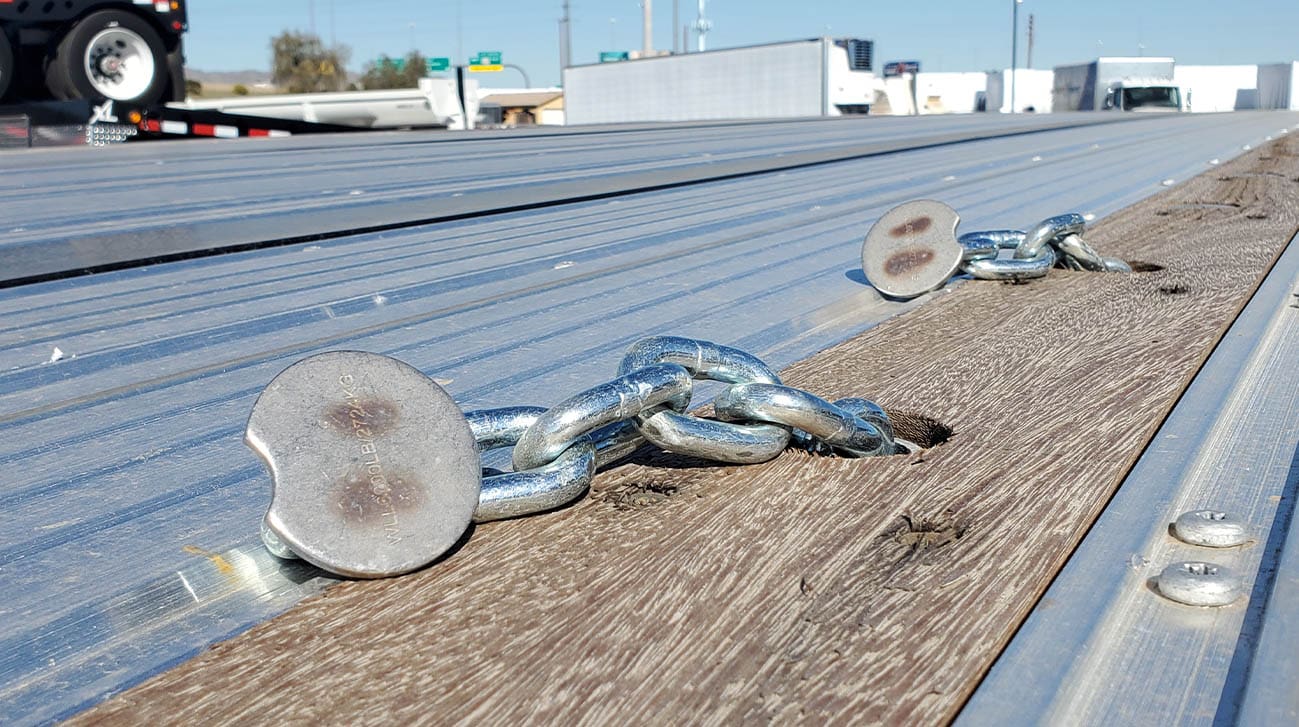

• Chain ties: 14 recessed chain ties, evenly spaced

BRAKES

• ABS: 2S/1M
• Auto slack adjusters
• Parking brakes on all axles

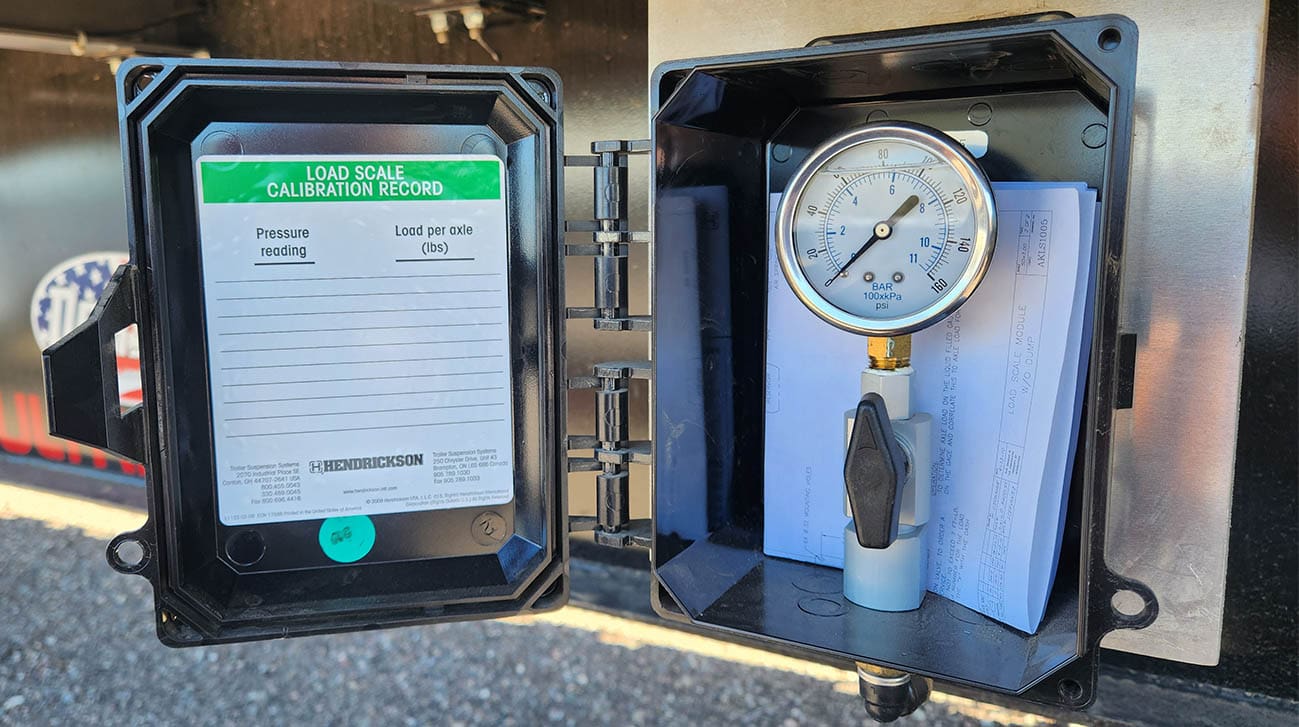

SCALES

• Air Weigh liquid air scale, sealed box

WHEELS & TIRES

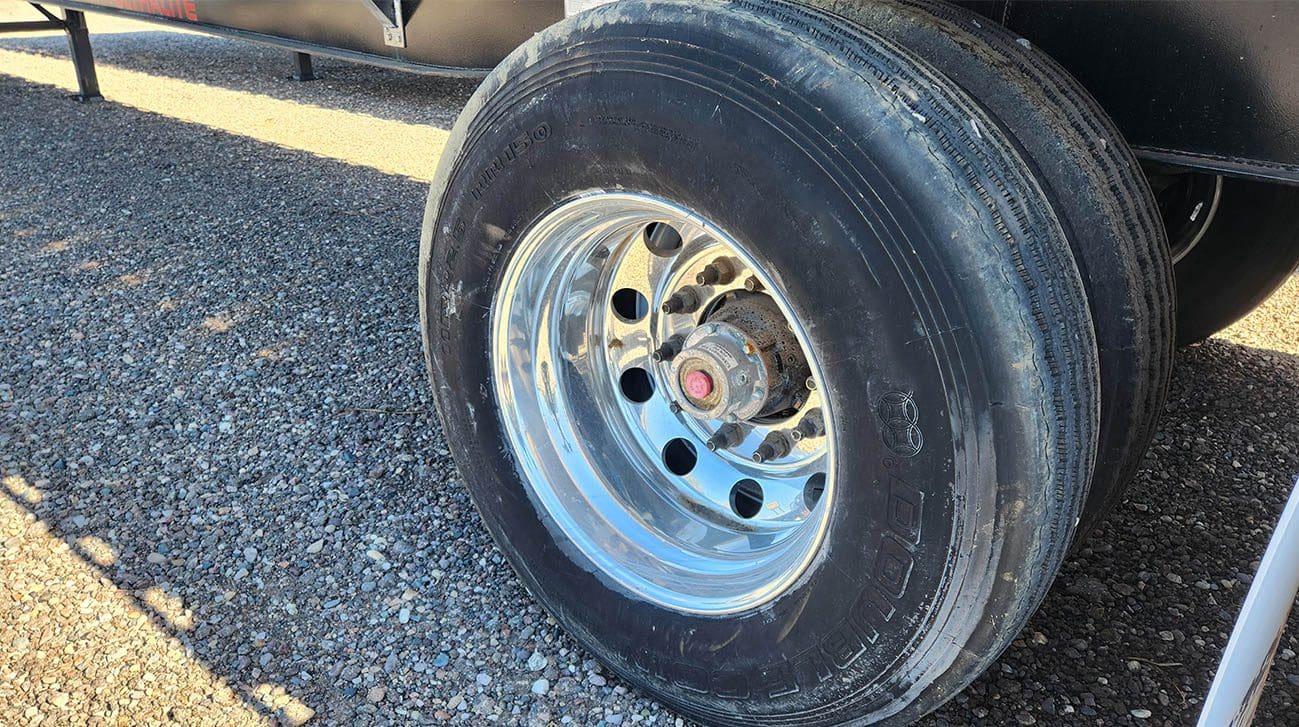

• Polished aluminum outer wheels, steel inner
• 295/75R22.5 Double Coin tires

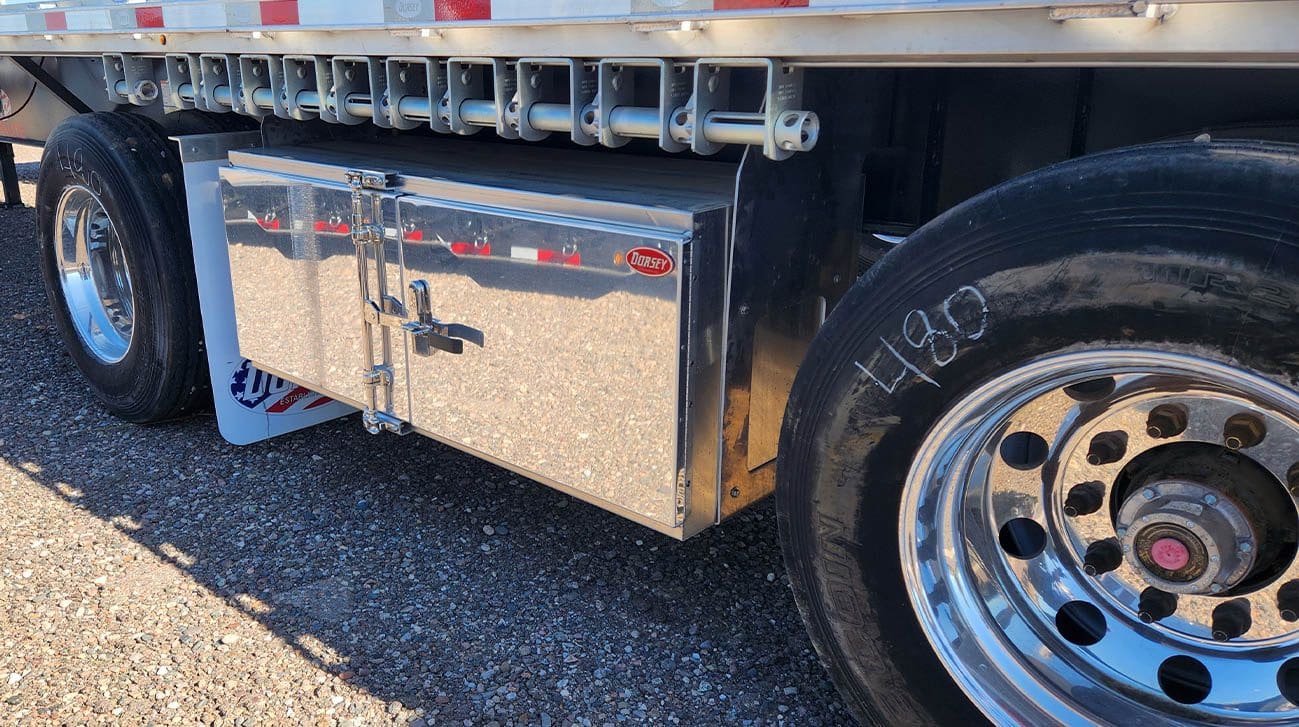

TOOLBOX

• 24″ x 24″ x 50″ aluminum, barn style double door
• Toolbox mounted on Dorsey flatbed trailer driver side, between spread axles

LIGHTING

• Sealed wiring harness w/ LED package. Micro (2) Front (2) rear sides – 3 ctr rear
