Reitnouer MaxMiser flatbed trailer for sale at Midco Sales in Chandler, AZ. Key Trailer Specs: Dimensions: 48′ x 102″, aluminum flatbed trailer, 90,000 GVWR, coil package, lift axle, aluminum wheels, air ride suspension.
2022 Reitnouer MaxMiser Flatbed
1 Video

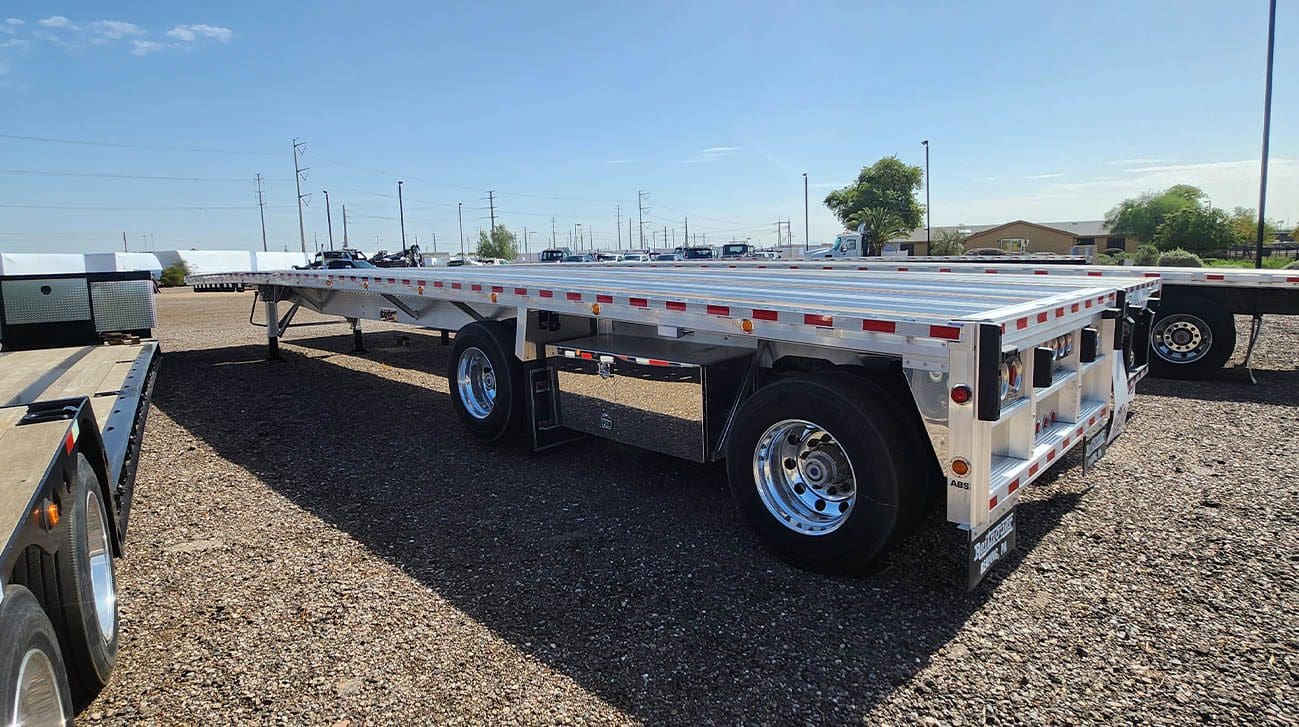

This Reitnouer flatbed trailer is 48 feet long and weighs approximately 9,200 pounds. These specs offer a unique combination of capacity and weight savings for an aluminum flatbed trailer.
The Reitnouer MaxMiser flatbed has a 90,000 lb GVWR, rated at 60,000 lb in a 10′ section and a full 50,000 lb in a 4′ section.
This aluminum flatbed trailer has a bolted design, instead of welded, which is common on other aluminum flatbeds. Reitnouer has proved this is a stronger trailer design.
This Reitnouer Maxmiser trailer features air ride suspension, a front lift axle, mini coil package (reinforced to haul steel coils) and all aluminum wheels.
Reitnouer MaxMiser Flatbed Trailer Specs
Complete this short online application to begin the financing process. A Midco Sales representative will then contact you to obtain additional needed information.
Contact Information
1200 S Akimel Ln, Chandler, AZ 85226
PHONE:
480-999-0607
Send Us A Message
REITNOUER MAXMISER DIMENSIONS
The Reitnouer flatbed trailer measures 48′ x 102″ and has a 90,000 pound GVWR.
- Length: 48′
- Width: 102″
- Weight: 9,200 lbs +/- 3%
TRAILER CONSTRUCTION

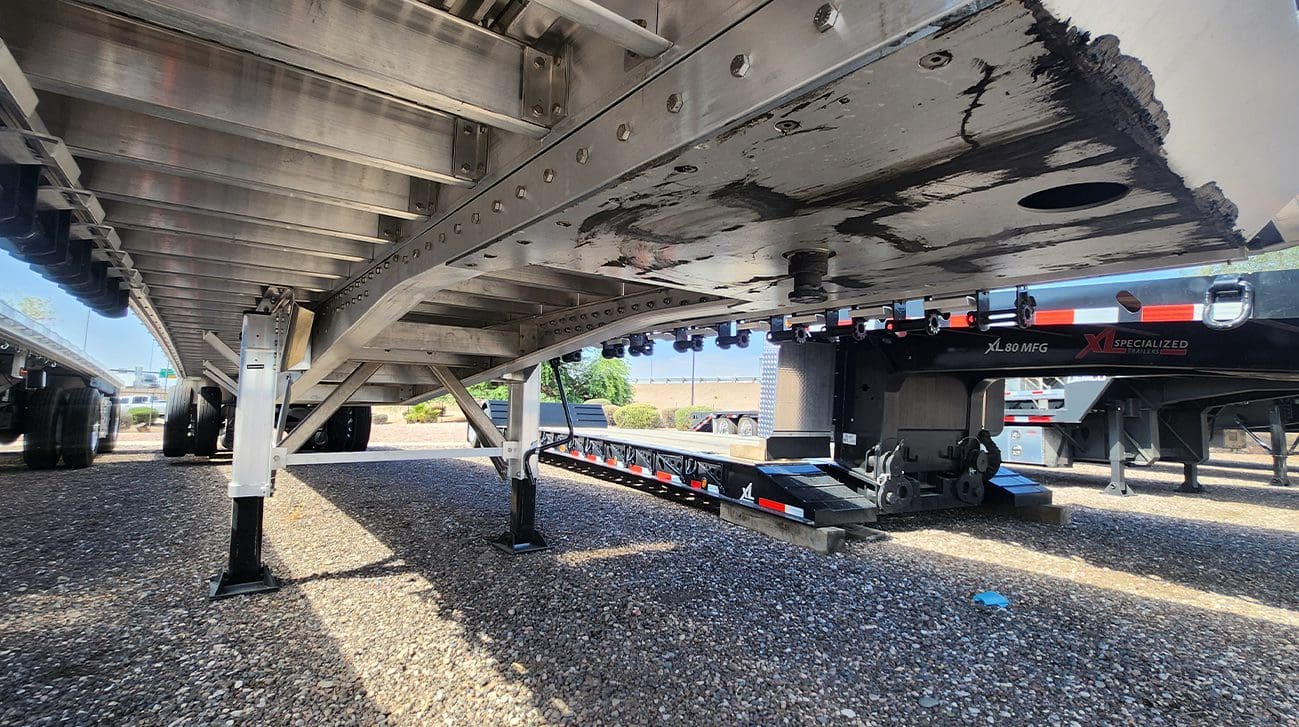

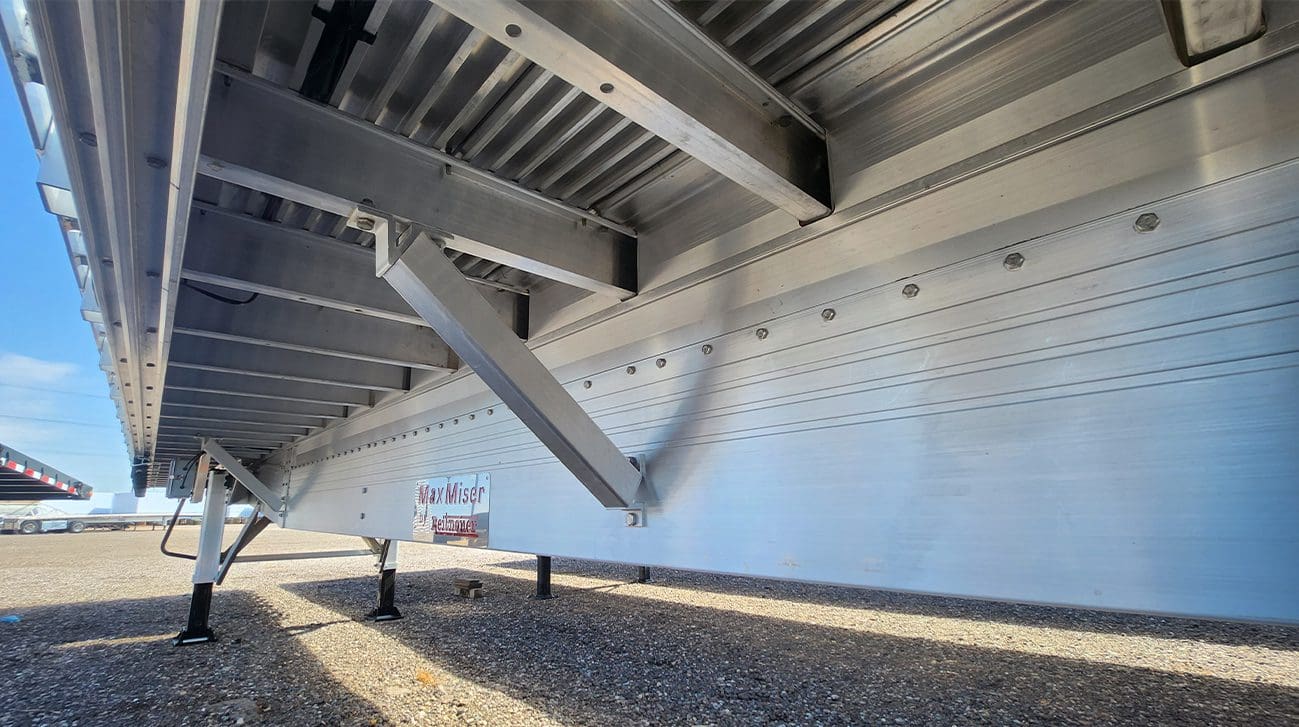

The Reitnouer MaxMiser is an aluminum flatbed trailer with Reitnouer’s unique bolted design. It has a solid single-piece crossmember reinforced with an inner extrusion that adds strength between the main beams.
- Aluminum flatbed trailer
- Double spool side rail
COUPLING
- 24″ kingpin
FLOOR

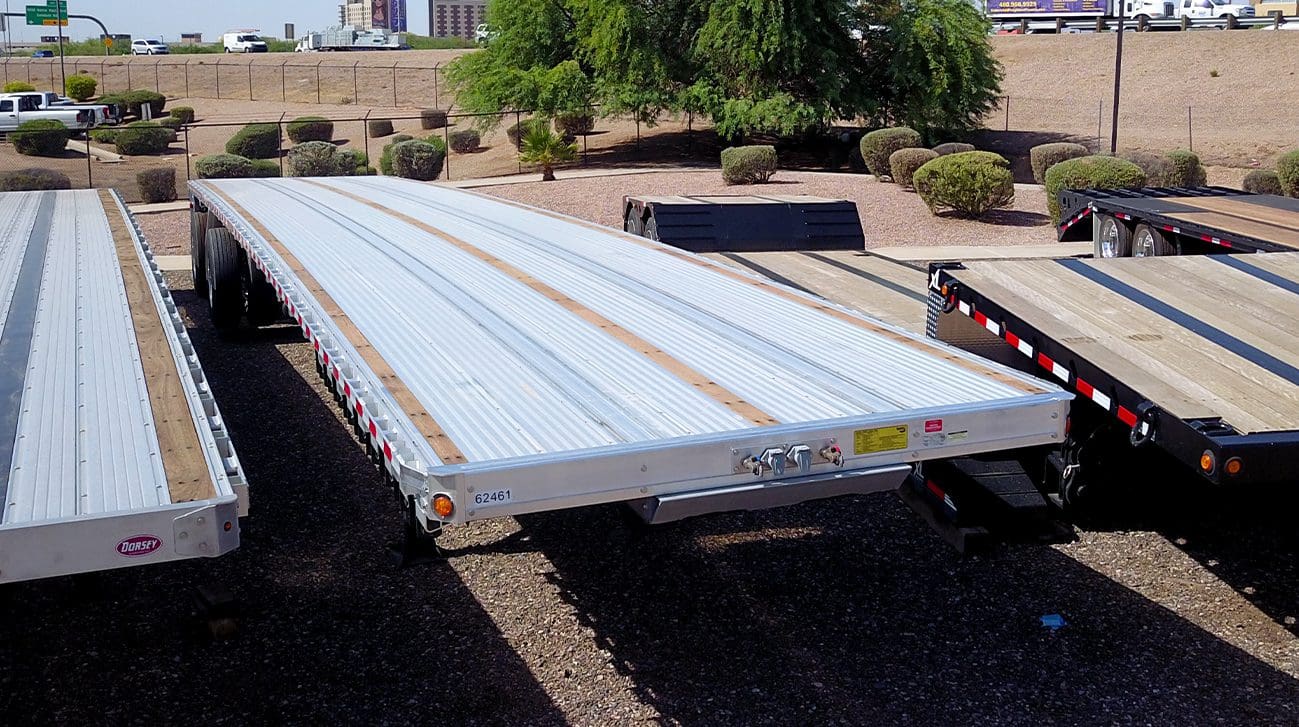

The aluminum floor and three wood nailers on this Reitnouer flatbed trailer provide versatile options for securing loads.
- Aluminum floor
- Heavy duty safety tread
- 3 apitong nailers
SUSPENSION & AXLES

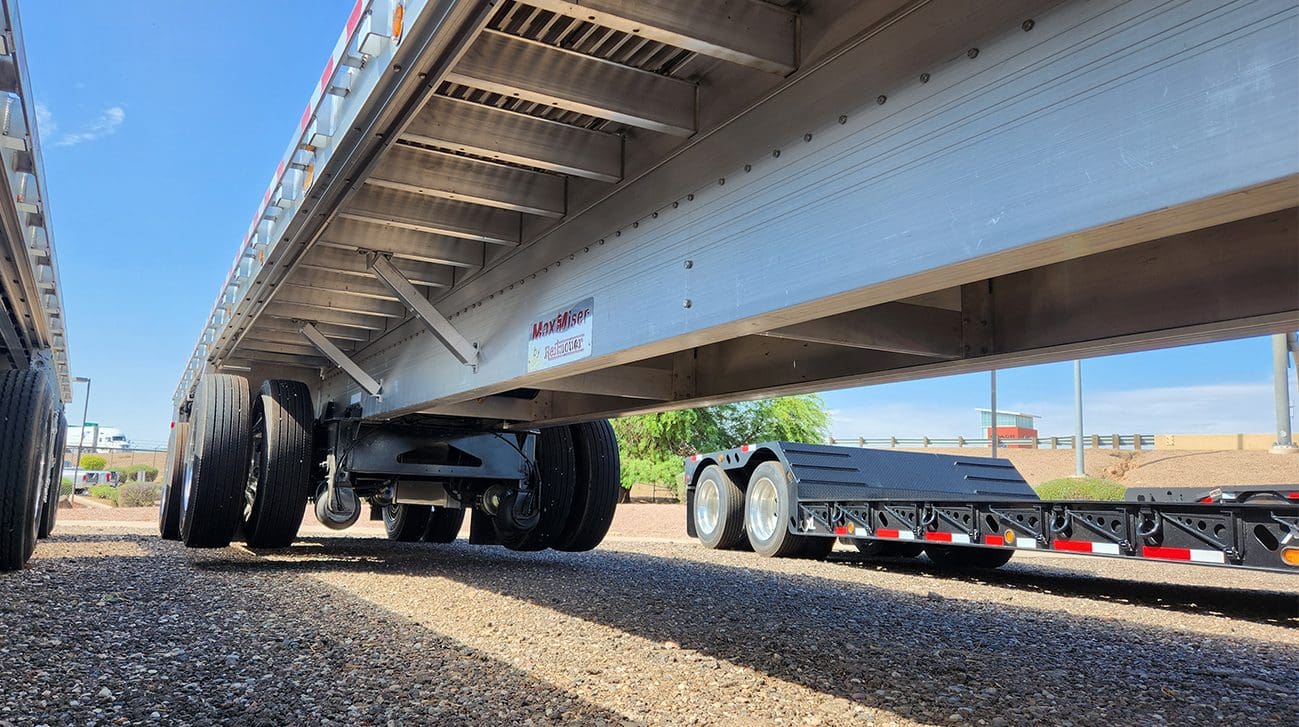

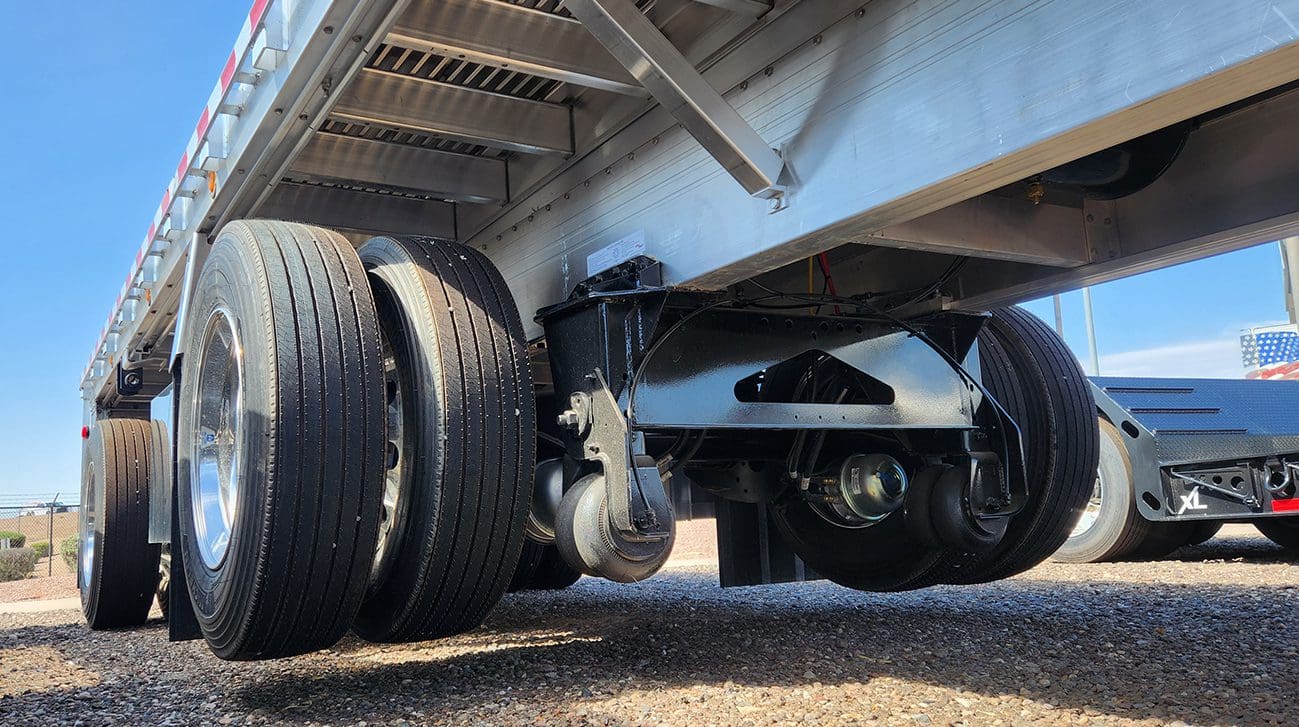

This Reitnouer MaxMiser trailer has an air ride, spread axle suspension. The front axle lift raises this axle when not needed.
- Hendrickson Intraax suspension – air ride
- Tandem axles
- Front axle lift
- Scalamatic w/ electric dump valve
LOAD SECUREMENT

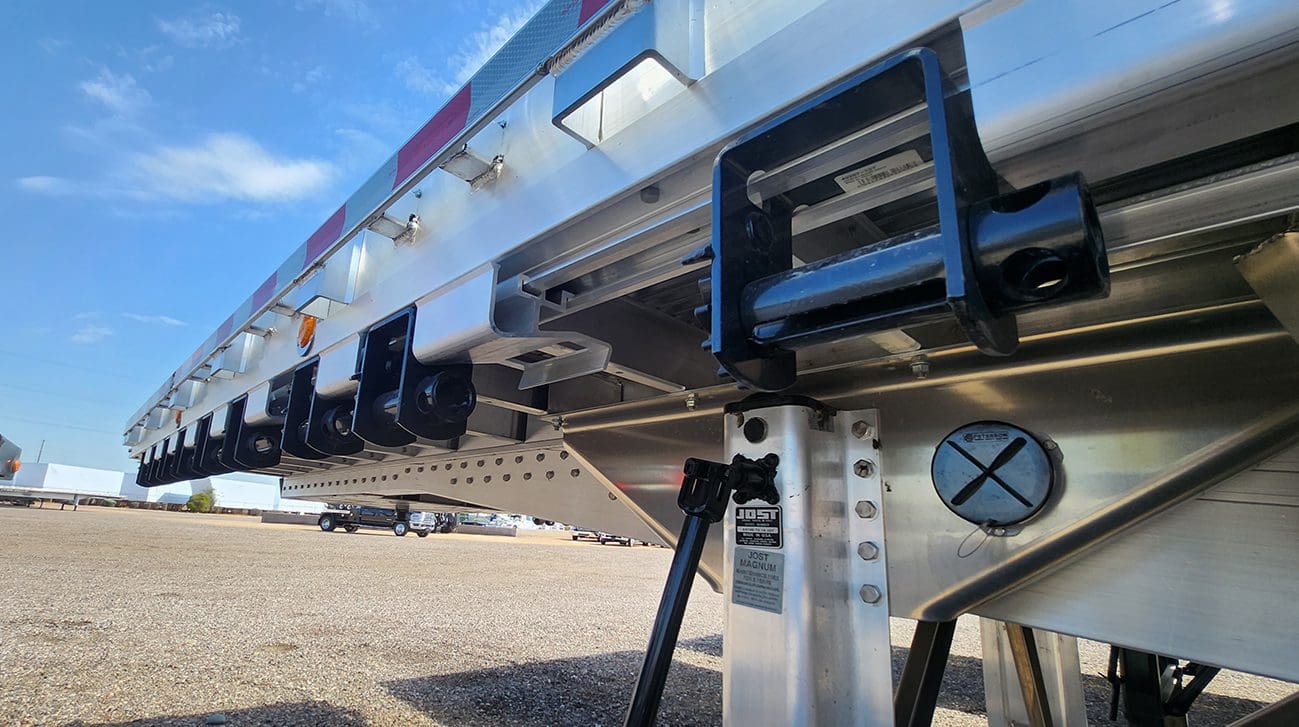

- Sliding winch track (both sides)
- 10 winches each side on each side of the flatbed trailer
- 20 strap retainers (10 per side)
COIL PACKAGE
This Reitnouer MaxMiser flatbed is reinforced with a coil package for transporting steel coils.
- Mini coil package (additional crossmembers and bracing for hauling steel coils)

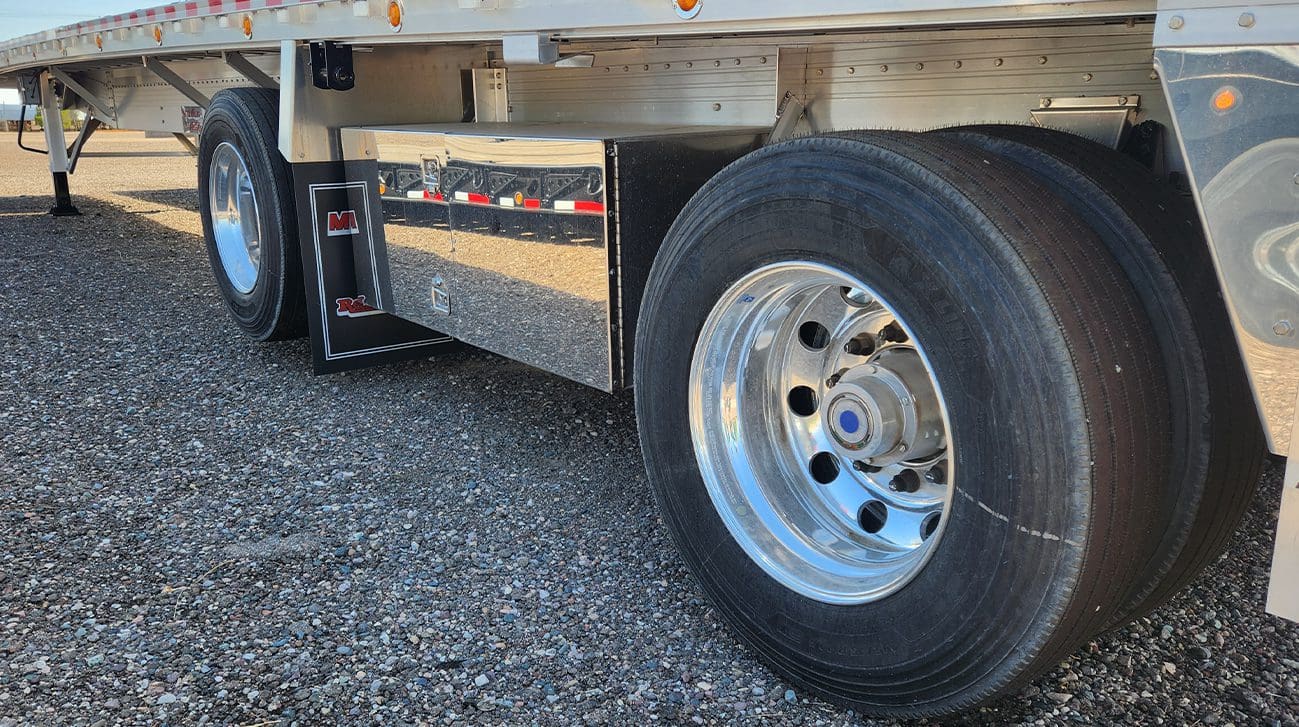

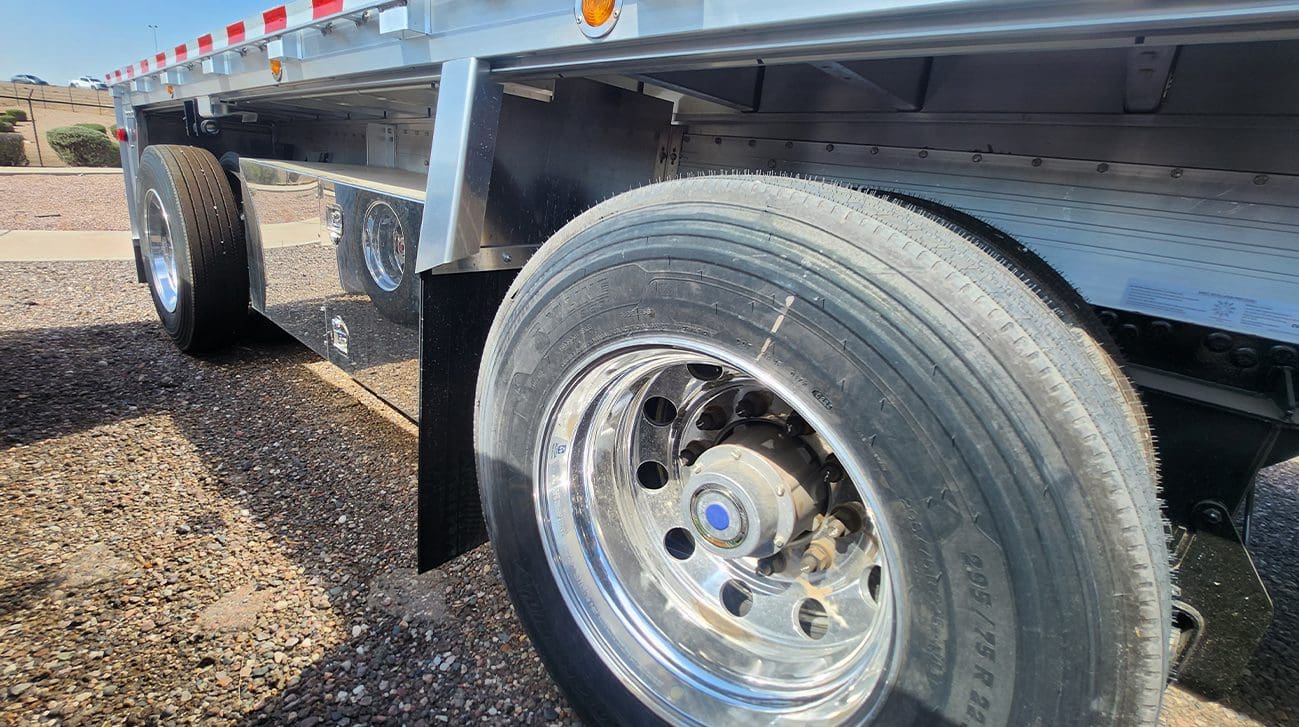

WHEELS & TIRES
Aluminum wheels are standard on all Reitnouer Maxmiser trailers.
- Michelin X-Line 275/80R 22.5 tires
- Aluminum wheels
BUMPERS
- 3-piece DOT bumper
- Rubber dock bumpers
ELECTRICAL & AIR

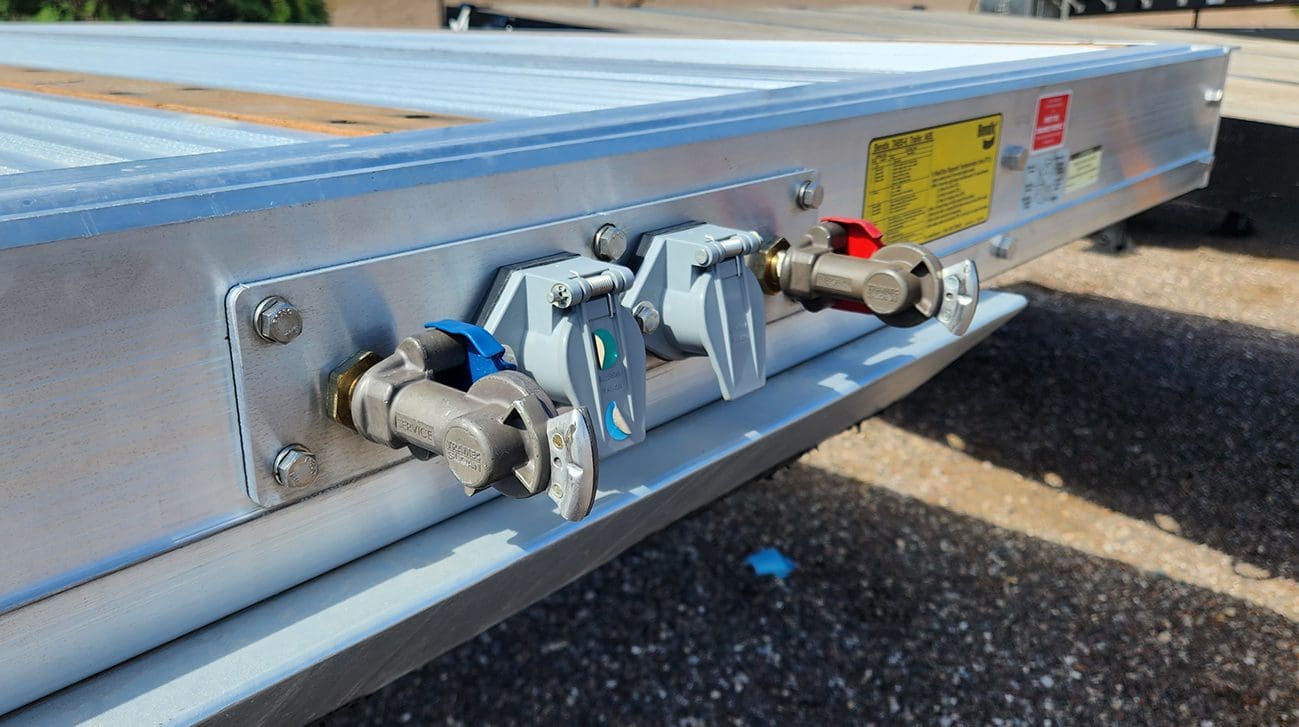

- 7 & 4 wire aux receptacles, 1 extra 4 wire on rear
LIGHTING
- 13 LED lights on each side of aluminum flatbed trailer
- LED 3 S/T/T lamps, 5 center markers w/ 5 bottom clearance lights
LANDING GEAR
- Jost aluminum landing gear
TOOLBOXES
Aluminum toolboxes are mounted on each side of this Reitnouer flatbed trailer.
- Two 24″ x 24″ x 60″ double door toolboxes
REITNOUER WARRANTY
This Reitnouer MaxMiser trailer has a 5 year limited warranty
