2027 XL Specialized XL70 HDGSM 35-Ton Hydraulic Detachable Gooseneck Mini Deck Lowboy Trailer

The XL Specialized XL70 HDGSM Hydraulic Detachable Gooseneck Mini Deck Lowboy Trailer is engineered for demanding heavy-haul applications, delivering a 35-ton capacity, an exceptionally low 12-inch loaded deck height, and the versatility needed to transport heavy construction equipment, machinery, and oversized loads.

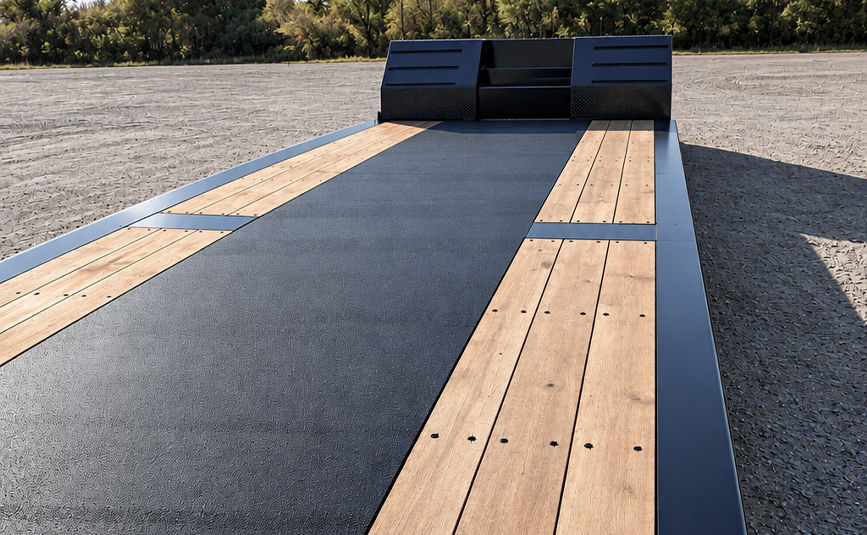

The mini deck design features an ultra-low main deck that rides closer to the ground than a conventional lowboy or double drop trailer. With a loaded deck height of just 12 inches and 4 inches of ground clearance, this configuration maximizes available vertical clearance when transporting tall equipment, helping operators accommodate taller loads while managing overall transport height.

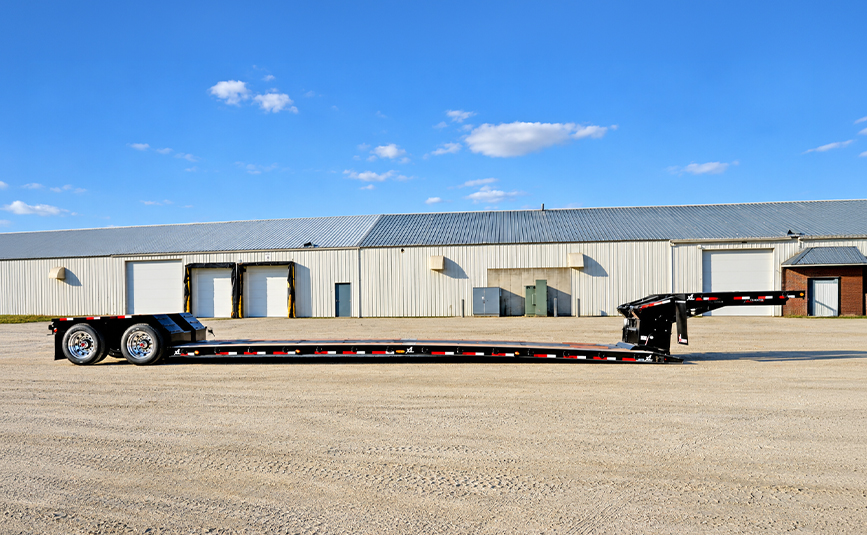

Measuring 53 feet long and 102 inches wide, the XL70 HDGSM features a 33-foot main deck with 32 feet, 6 inches of clear deck space. Its 35-ton capacity is rated for both distributed loads and 70,000 lbs. concentrated within 16 feet.

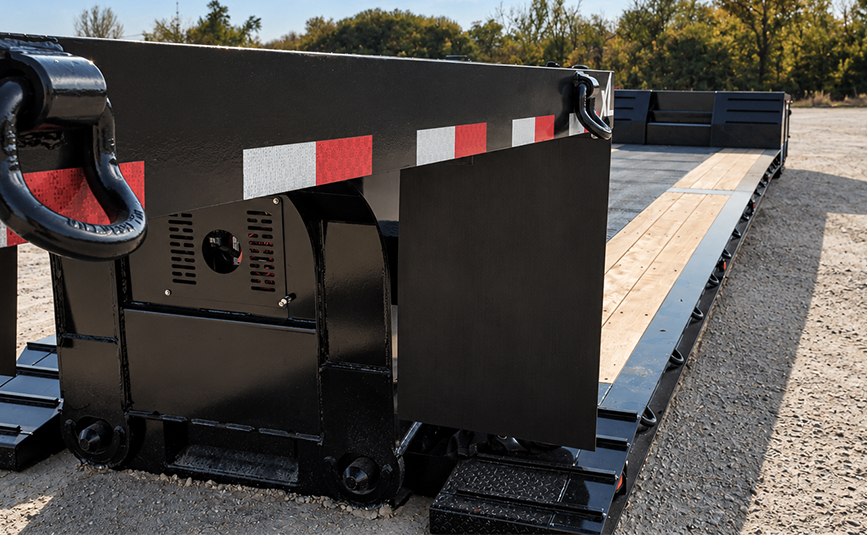

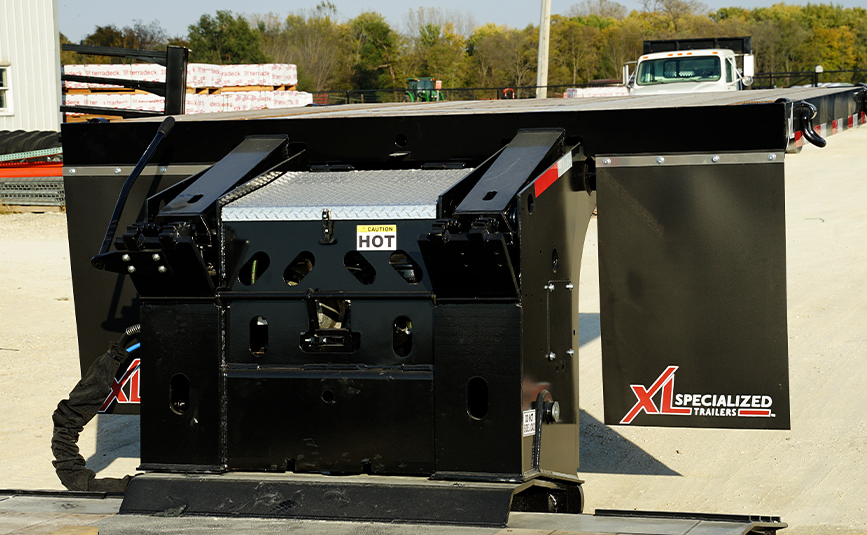

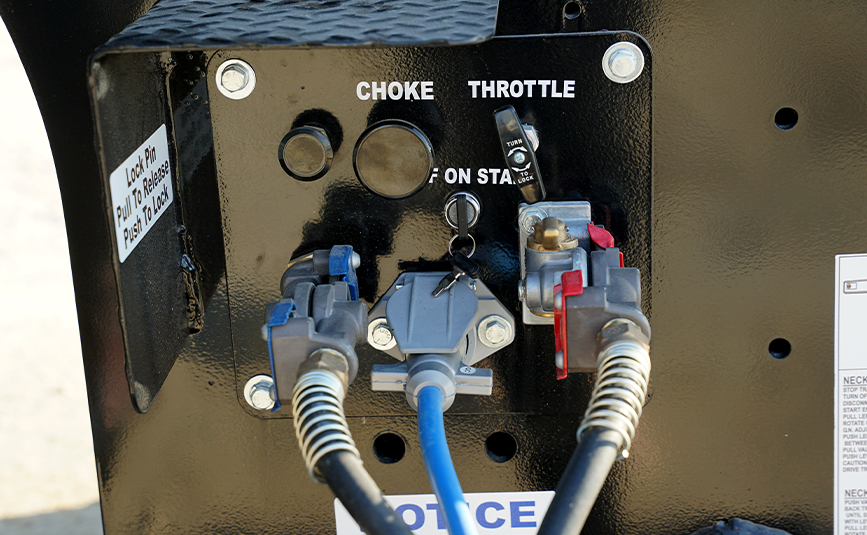

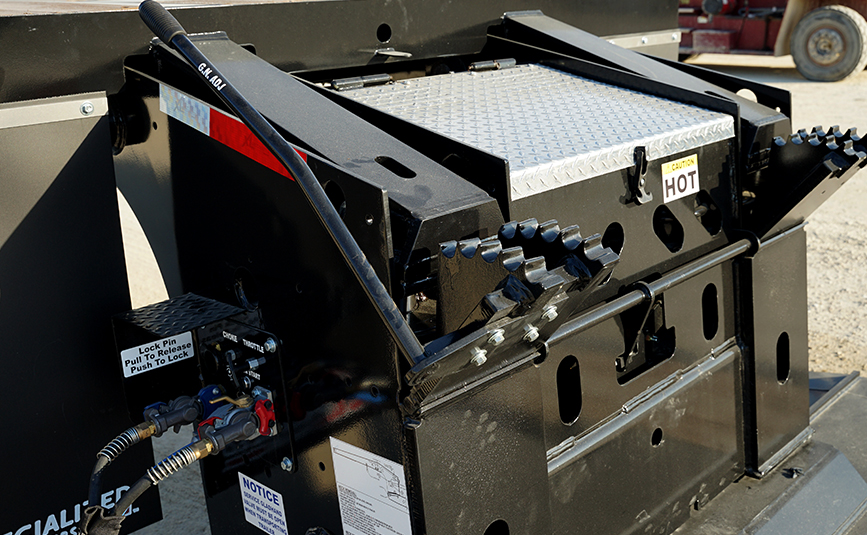

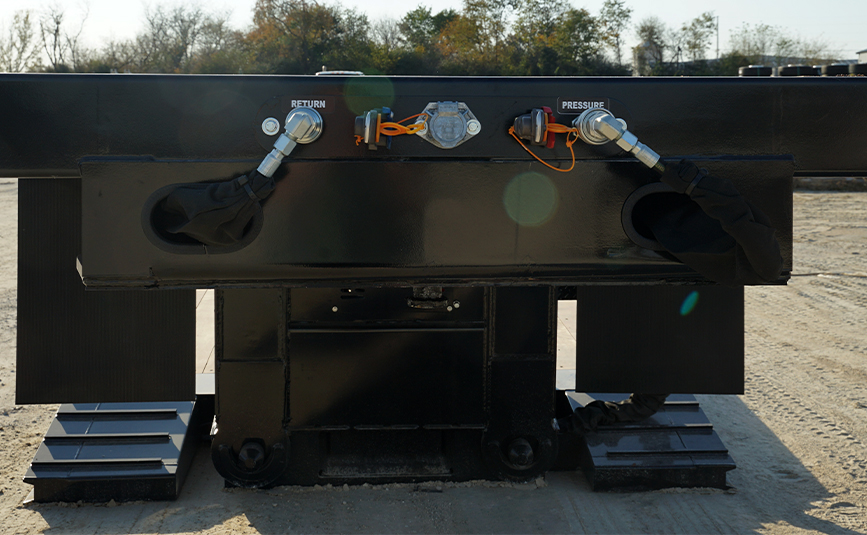

The 11-foot full-width hydraulic detachable gooseneck features Apitong decking, providing additional usable deck space and securement options. A self-contained 13 HP pony motor powers the dual hydraulic system, allowing the gooseneck to be detached and reattached without relying on the tractor's hydraulic system. Five variable ride-height positions provide additional flexibility for loading, clearance, and operating conditions.

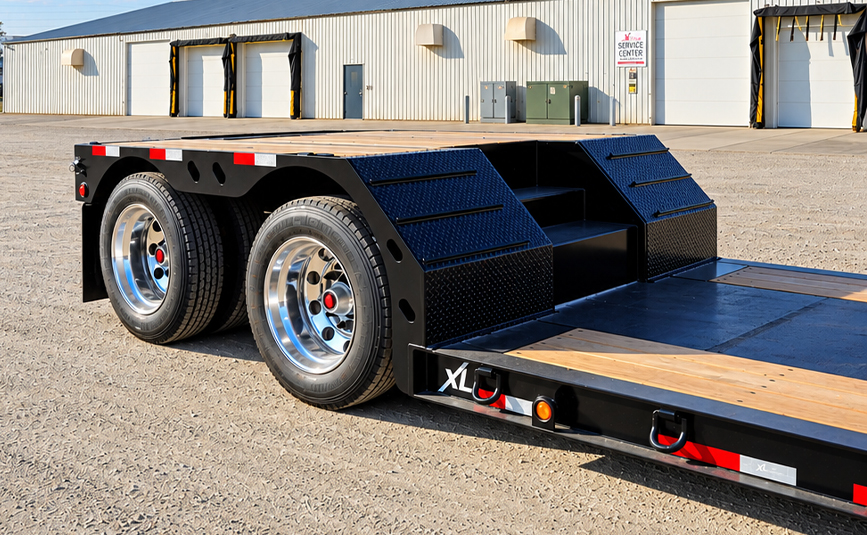

The trailer rides on Hendrickson air ride suspension with tandem 25,000 lb. axles spaced 54 inches apart. This suspension helps deliver a smoother ride and improved load stability when transporting valuable heavy equipment. Additional features include an Air Weigh onboard scale system, polished aluminum outer wheels, 14 bent D-rings per side on the main deck, manual rear ride-height control, and a 9-foot rear deck prepped for a future flip-axle installation.

Built for professional heavy-haul operators, the 2027 XL Specialized XL70 HDGSM 35-Ton Mini Deck Lowboy combines exceptional low-deck clearance, hydraulic detachable convenience, and heavy-duty construction in a versatile equipment transport trailer.
