Transporting a commercial bus, motorcoach, or large recreational vehicle presents challenges that go well beyond the weight of the vehicle. Long wheelbases, low ground clearance, extended overhangs, and limited approach angles can make loading onto a conventional trailer difficult or even impractical.
For professional transport companies, selecting the right bus transport trailer can make a significant difference in loading efficiency, vehicle protection, and operational flexibility.
The Landoll 850XT extendable lowboy is an example of a trailer engineered specifically to address these challenges.
Why Buses and RVs Require Specialized Loading Equipment
Unlike many types of construction equipment, buses and motorcoaches often have long, relatively low bodies with substantial front and rear overhangs.
When driving a coach onto a trailer, the transition between the ground, loading ramps, and trailer deck becomes particularly important. An excessively steep approach can cause the underside, front bumper, or rear bodywork to contact the loading surface.
A specialized lowboy trailer helps address these problems through several design characteristics:
- Low deck height: Helps minimize overall transport height while providing clearance for tall vehicles.
- Reduced loading angles: Helps accommodate vehicles with limited ground clearance and long overhangs.
- Extended loading surfaces: Provides flexibility when transporting vehicles with long wheelbases.
- Specialized ramps and bolsters: Helps support vehicle loading across different sections of the trailer.
These features are particularly valuable when moving transit buses, highway motorcoaches, shuttle buses, and large motorhomes.
How an Extendable Lowboy Accommodates Longer Vehicles
Vehicle length is another major consideration in bus and RV transportation.
A conventional fixed-length trailer may not provide the necessary support or positioning flexibility for longer coaches. An extendable lowboy allows operators to adjust the trailer configuration to better accommodate the dimensions and weight distribution of different loads.
The Landoll 850XT-53, for example, offers four trailer-length configurations:
| Configuration | Trailer length |
|---|---|
| Retracted | 53 feet |
| First extension | 55.5 feet |
| Second extension | 58 feet |
| Fully extended | 61 feet |
This adjustable design makes the trailer useful for transport operations handling vehicles of varying lengths.
Operators must still evaluate axle loading, weight distribution, applicable permits, and the trailer’s reduced capacity when extended.
Low Ground Clearance and Loading Angles
One of the most important considerations when loading a motorcoach is preventing contact between the vehicle’s undercarriage and the trailer.
The Landoll 850XT incorporates a low-profile detachable design with approximately six inches of loaded ground clearance. Its loadable deck extends toward the rear bumper, while ride-height adjustments at the gooseneck and rear trunnion provide additional flexibility during loading.
These design elements help operators manage difficult approach and departure angles.
For a bus or motorhome with a long rear overhang, the difference between a suitable loading angle and an excessively steep one can determine whether the vehicle can be loaded without damage.
Actual loading compatibility depends on the vehicle’s dimensions, suspension, ground clearance, and loading conditions.
Transporting Disabled or Non-Running Buses and RVs
Not every vehicle being transported can be driven onto a trailer.
Mechanical failures, accident damage, and vehicles awaiting repair can create additional loading challenges. In these situations, properly configured winching equipment becomes especially important.
A bus-hauling trailer equipped with a heavy-duty winch can assist with controlled loading of non-running vehicles when the pulling arrangement, vehicle condition, and loading procedures permit.
Specialized ramp systems, strategically positioned tie-down points, and accessible loading controls can also help operators handle these challenging assignments.

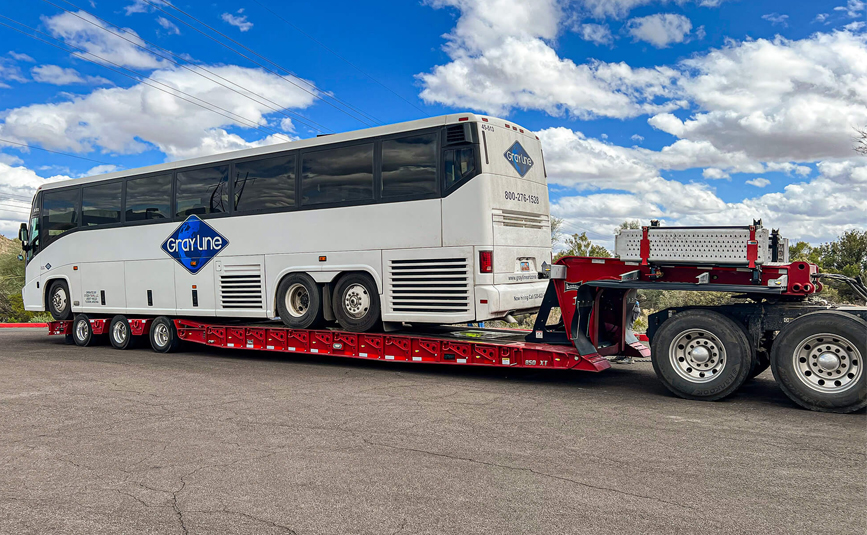

A Practical Example: The Landoll 850XT Bus Hauler
For operators looking for a trailer designed around these requirements, Midco Sales offers a 2027 Landoll 850XT-53 extendable lowboy equipped for specialized bus, motorcoach, and RV transportation.

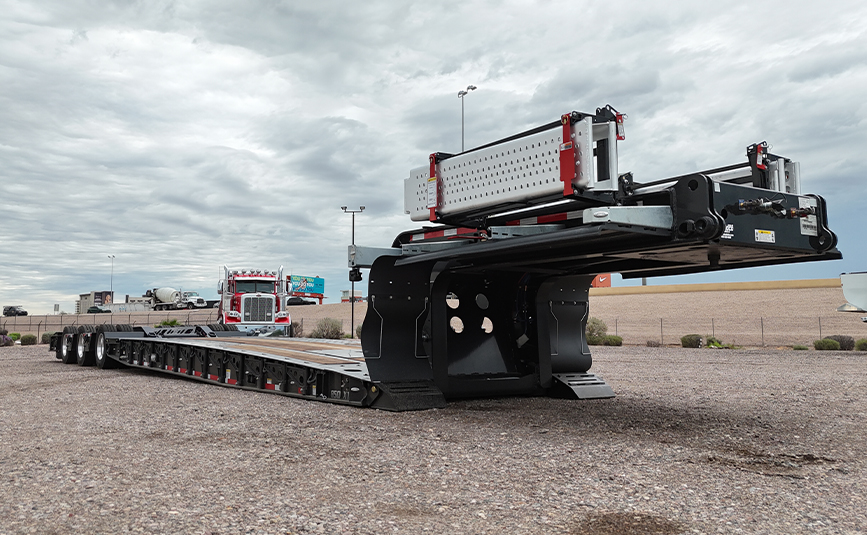

This particular trailer combines a 50-ton frame capacity with a hydraulic detachable gooseneck, adjustable trailer length, and equipment specifically suited for vehicle hauling.
Notable features include:

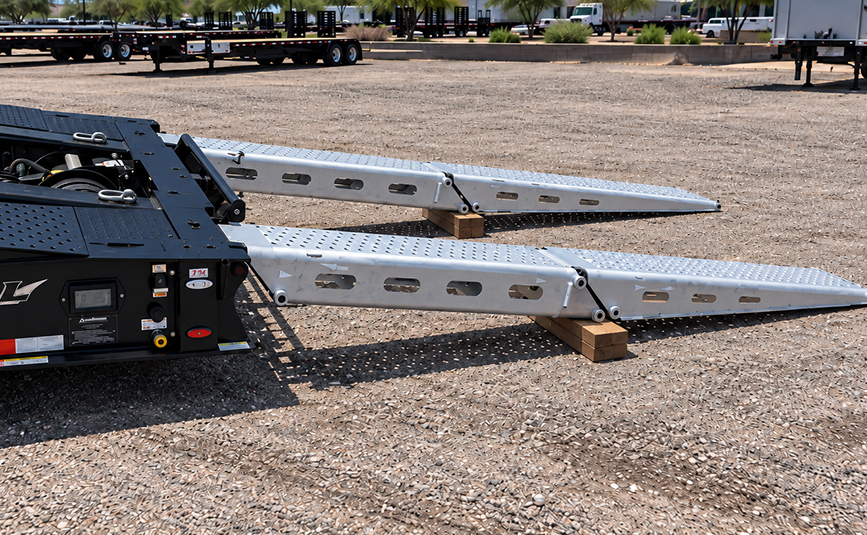

- Four-piece bus ramp system with lift assistance and lockable storage
- 20,000-pound rear-mounted winch with remote control
- Extendable trailer configuration reaching 61 feet
- Apitong wood decking and swing-out outriggers
- Multiple D-rings and integrated cargo securement points
- Tri-axle air-ride suspension with lift-axle equipment

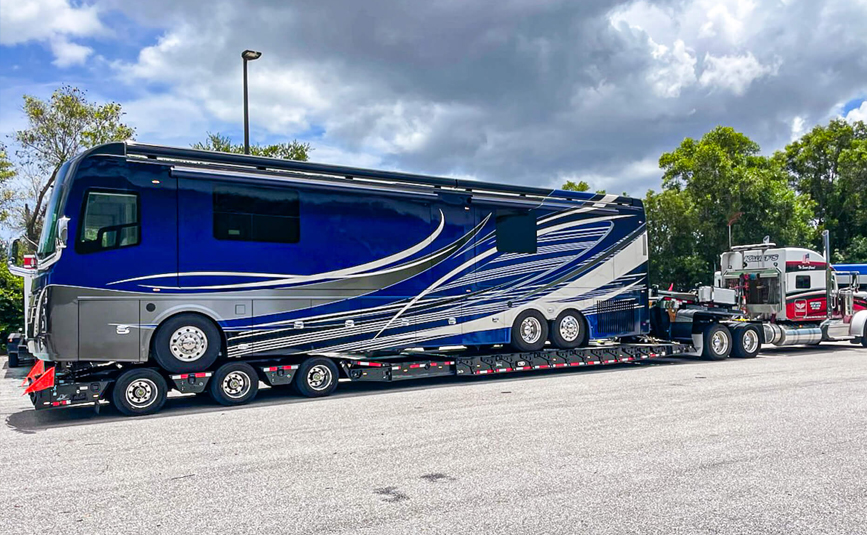

Together, these features make this configuration particularly relevant to companies transporting buses, motorcoaches, large recreational vehicles, fire apparatus, and other specialized equipment.
View the 2027 Landoll 850XT Extendable Lowboy Bus Hauler at Midco Sales for complete specifications, photographs, pricing, and availability.
Choosing the Right Trailer for Bus and RV Transportation
When evaluating a bus transport trailer, operators should consider more than the trailer’s maximum weight rating.
Vehicle wheelbase, approach and departure angles, underbody clearance, axle loads, loading method, and securement requirements all affect whether a particular trailer is suitable for a given transport assignment.
For companies regularly moving large coaches or recreational vehicles, an extendable lowboy equipped with dedicated bus-loading features can provide valuable flexibility across a range of assignments.
Midco Sales is an authorized Landoll trailer dealer in Arizona, offering specialized heavy-haul equipment to customers nationwide.
For information about the available Landoll 850XT or assistance selecting a trailer for your hauling requirements, contact Midco Sales at (480) 999-0607. Nationwide delivery is available.
