Heavy haul transportation isn’t one-size-fits-all. Some loads are tall. Some are extremely heavy. Others are simply too long for a standard trailer configuration. That’s where an extendable double drop trailer becomes one of the most versatile tools in the heavy equipment world.

From hauling large excavators and crushing equipment to transporting bridge components and oversized machinery, extendable double drop trailers are designed to handle freight that standard flatbeds, lowboys, and fixed double drops often cannot accommodate efficiently.

In this article, we’ll explain what an extendable double drop trailer is, how it works, and when contractors and heavy haul operators actually need one.

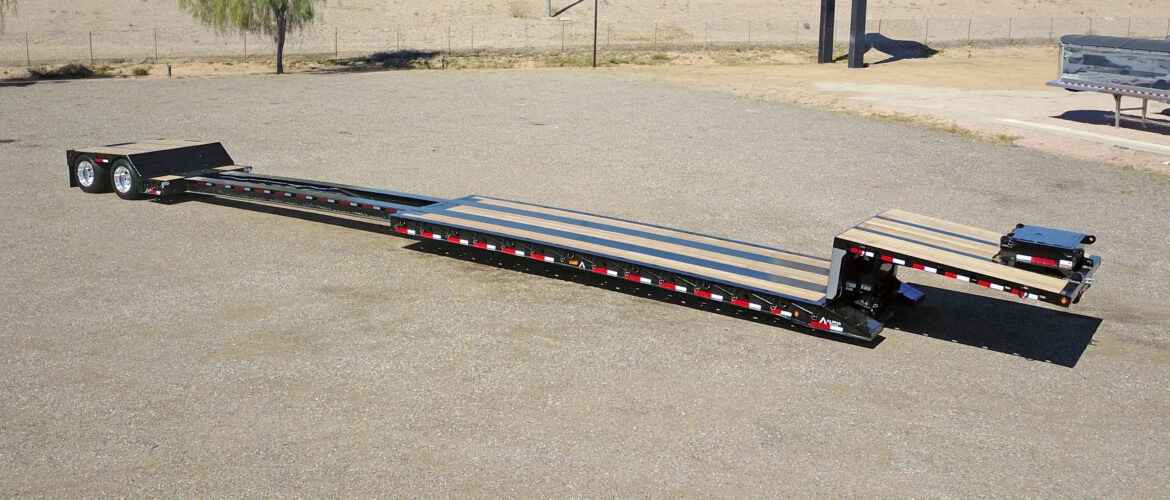

What Is an Extendable Double Drop Trailer?

An extendable double drop trailer is a specialized heavy haul trailer that combines two major advantages:

• A low deck height for hauling taller equipment
• An extendable deck for hauling longer freight

Like a standard double drop trailer, the deck drops down between the gooseneck and rear axles to create a lower “well” section. This lower deck height helps operators legally transport taller loads without exceeding height restrictions.

What makes the extendable version different is the ability to lengthen the main deck when needed. Instead of being locked into a fixed deck length, operators can extend the trailer to accommodate larger or longer equipment while still maintaining proper weight distribution and axle spacing.

This flexibility makes extendable double drop trailers extremely popular in industries such as:

• Construction
• Heavy equipment transport
• Infrastructure
• Oil & gas
• Aggregate and mining
• Agricultural equipment hauling

Why Deck Extension Matters

One of the biggest challenges in heavy hauling is balancing load size with legal transportation requirements.

A trailer that’s too short can create:

• Improper axle loading
• Excessive overhang
• Poor weight distribution
• Reduced maneuverability
• Permit complications

An extendable trailer gives operators the flexibility to adjust the deck length to match the load.

For example, the new Alpha HD extendable double drop trailer currently available at Midco Sales features:

• A 29-foot closed deck
• Extension capability out to over 50 feet
• Air-operated lock pins with extension positions every 2 feet
• 80,000 lb concentrated capacity in 16 feet closed

That means operators can keep the trailer compact when hauling shorter equipment, then extend the deck when transporting longer machinery or oversized freight.

Common Loads for Extendable Double Drop Trailers

Extendable double drops are often used for freight that is both heavy and long.

Some common examples include:

• Excavators with long stick configurations
• Asphalt pavers
• Crushing and screening equipment
• Large agricultural machinery
• Bridge beams
• Structural steel
• Transformers
• Tanks and industrial components
• Drill rigs
• Pipeline equipment

The lower deck height also makes these trailers ideal for hauling taller equipment while staying within legal height restrictions.

Benefits of a Mechanical Detachable Gooseneck

Many extendable double drop trailers use a detachable gooseneck design to simplify loading and unloading.

Mechanical detachable necks remain extremely popular because they offer:

• Simpler operation
• Reduced maintenance compared to hydraulic systems
• Lower overall trailer weight
• Excellent durability
• Lower long-term ownership costs

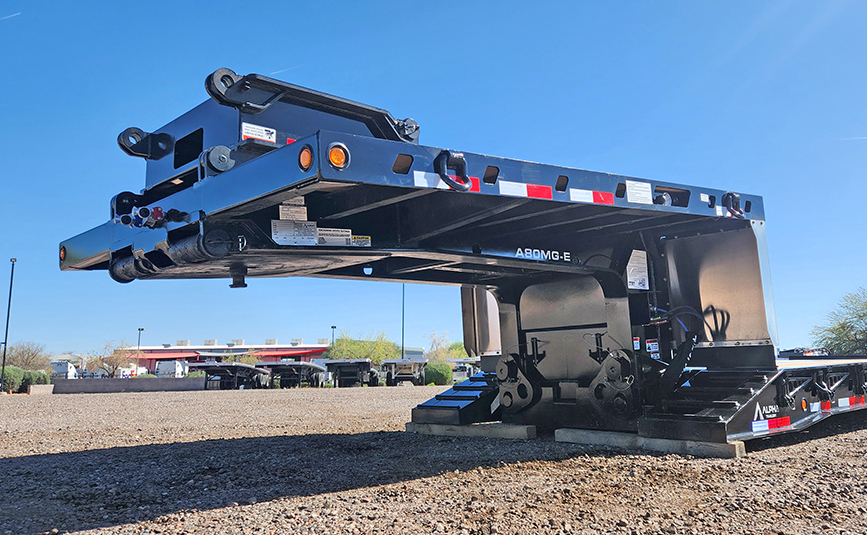

The Alpha HD trailer featured by Midco Sales includes a 10-foot mechanical detachable neck with:

• Full-width Apitong decking
• Air assist gooseneck support arm
• Flip neck
• Multiple ride height positions
• Full-width loading platform

This setup makes loading tracked equipment significantly easier while maintaining the strength required for heavy haul applications.

Closed vs Extended Operation

One of the major advantages of an extendable double drop is operational flexibility.

When closed, the trailer offers:

• Better maneuverability
• Reduced overall length
• Easier transportation between jobs
• Improved handling in tighter jobsite environments

When extended, operators gain:

• Additional deck space
• Better load distribution
• More flexibility for oversized freight
• Improved spacing for multiple pieces of equipment

This allows a single trailer to perform multiple hauling roles that might otherwise require separate trailer configurations.

Important Features Heavy Haul Operators Look For

Not all extendable double drop trailers are built the same. Experienced operators typically look for features that improve durability, loading flexibility, and long-term reliability.

Some of the most important features include:

• Fabricated I-beam construction
• Air ride suspension
• Multiple D-ring tie-down points
• Chain slots throughout the deck
• Swingout outriggers
• Flip axle reinforcement
• Low loaded deck height
• Heavy-duty crossmember construction
• Quality lighting and wiring systems

The Alpha HD A80MG-E includes:

• 14″ fabricated I-beams
• 20″ loaded deck height
• 6″ ground clearance
• Cush 25K air ride suspension
• AirWeigh QuickWeigh scale system
• Full-width Apitong decking
• Removable swingout outriggers
• Flip axle reinforcement

These are the types of features serious heavy haul operators often prioritize when investing in a trailer designed for long-term commercial use.

Watch the Trailer Extend

The ability to extend the trailer is one of the most important advantages of this design. Seeing the operation in action gives operators a much better understanding of how these trailers function in the real world.

Is an Extendable Double Drop Trailer Right for You?

An extendable double drop trailer may be the right choice if you regularly haul:

• Long heavy equipment
• Oversized machinery
• Tall loads requiring lower deck height
• Equipment with unusual weight distribution
• Multiple machines on a single load

For many contractors and heavy haul operators, an extendable trailer provides flexibility that a fixed trailer simply cannot match.

Instead of limiting operations to one specific load length, operators can adapt the trailer to fit a wide variety of hauling situations.

View This Alpha HD Extendable Double Drop Trailer for Sale

If you’re looking for a heavy-duty extendable double drop trailer with a mechanical detachable neck, air ride suspension, full-width Apitong decking, and over 50 feet of extended deck capability, this Alpha HD trailer is currently available through Midco Sales Inventory.
