2027 Peterbilt 567 35/40 Ton Rotator

  • Truck - Peterbilt
  • 567
  • Tow Truck - Wrecker

Overview

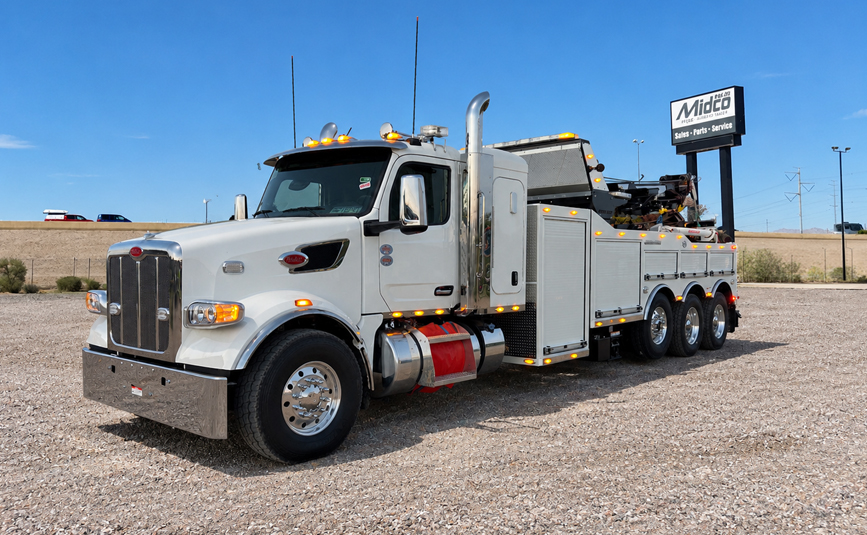

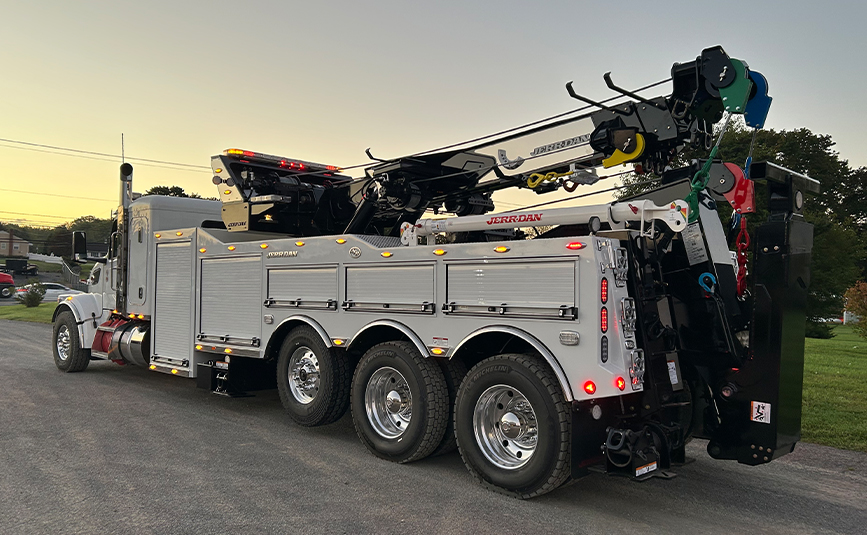

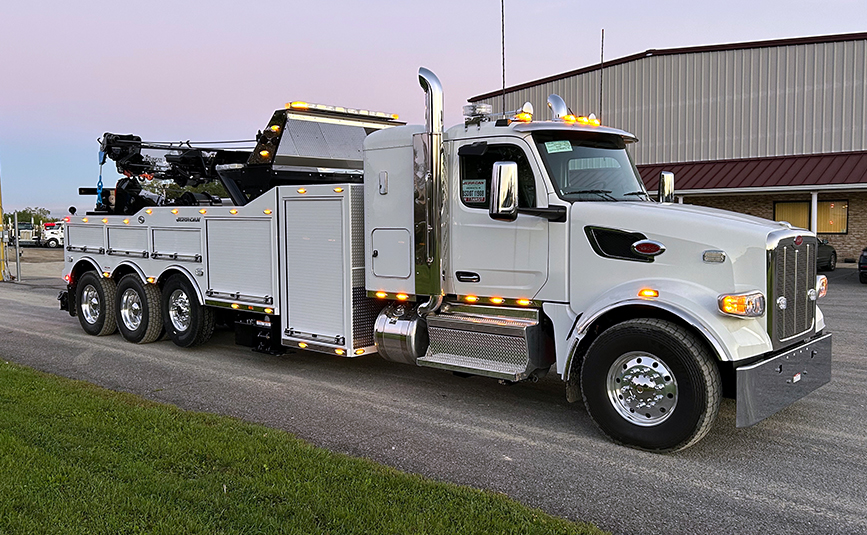

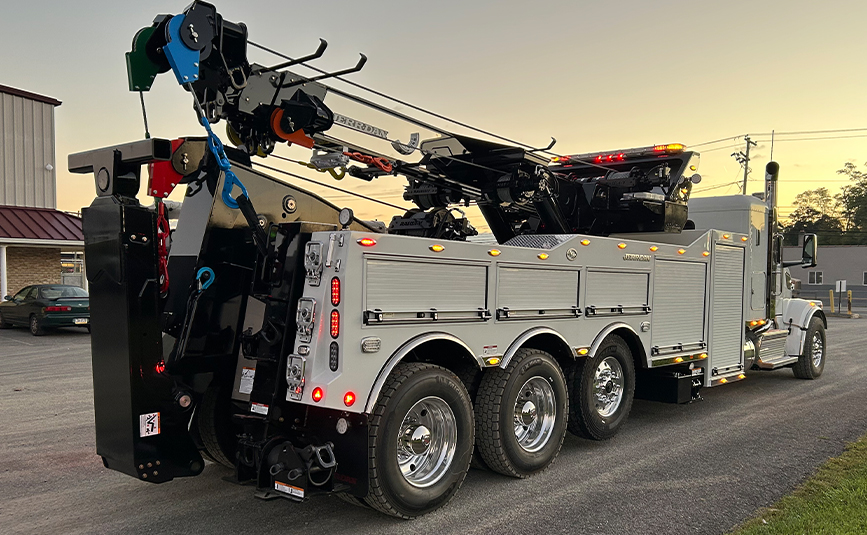

2027 Peterbilt 567 Jerr-Dan JD35/40 Ton Rotator Tow Truck

Built for demanding heavy-duty towing and recovery, this 2027 Peterbilt 567 Jerr-Dan JD35/40 Ton Rotator combines a rugged Peterbilt chassis with Jerr-Dan's latest heavy-recovery rotator platform. Power comes from a 565 HP Cummins X15 diesel paired with an Allison 4700 RDS-P automatic transmission, while the 44-inch sleeper provides added comfort and storage for long-distance and extended recovery operations.



The Jerr-Dan JD35/40 features a three-stage 37.5-foot rotating recovery boom with continuous 360-degree operation, dual 35,000-lb Ramsey main winches, a 15,000-lb auxiliary winch, and a 50,000-lb underlift/drag winch. Its S130-style outrigger system and heavy-duty torsion subframe provide the stability needed for demanding side and rear recoveries. Jerr-Dan rates the boom at 70,000 lbs retracted at 30 degrees.



For towing, this truck is equipped with Jerr-Dan's 500LP three-stage underlift, rated at 50,000 lbs retracted, 17,000 lbs extended and 80,000 lbs towing capacity, with up to 147 inches of reach past the tailboard. The build also includes front outriggers, wireless remote controls, a 40,000-lb spreader bar, 25,000-lb tire lift, fifth-wheel attachment, spring forks, recovery rigging packages, underlift and backup cameras, Whelen LED lighting, and Jerr-Dan's Gold tall-tunnel storage package.



With its 20,000-lb steer axle, 20,000-lb self-steering pusher, 52,000-lb tandem drives, 354-inch wheelbase, 160 gallons of fuel capacity, Platinum interior, this Peterbilt 567 is configured as a complete heavy-recovery truck—combining substantial lifting and towing capability with the equipment, storage and operator features needed for professional recovery work.

  • 40 ton capacity
  • Air Ride Suspension
  • Aluminum wheels
  • Automatic transmission
  • Nationwide Delivery
  • Rear view camera
  • Sleeper Cab
  • Toolbox
  • Warranty
  • Winch
  • Wireless remote

CHASSIS

  • Peterbilt 567
  • 8×4 configuration – 1 steer, 1 lift/pusher, 2 drive axles
  • 44" sleeper
  • 354" wheelbase
  • 86,000 lb GVWR
  • 110,000 lb GCW rating

ENGINE & TRANSMISSION

  • Cummins X15 Performance Series diesel
  • 565 HP @ 1,900 RPM
  • 1,850 lb-ft torque @ 1,000 RPM
  • Cummins Intebrake
  • Allison 4700 RDS-P Gen 6 7-speed automatic transmission (Push-button shifter)

AXLES & SUSPENSION

  • PACCAR FX-20 steer axle – 20,000 lb
  • 20,000 lb taper-leaf front suspension
  • Watson-Chalin self-steering pusher axle – 20,000 lb
  • Dana Spicer D52-190 tandem drive axles – 52,000 lb
  • Neway ADZ252 rear air suspension – 52,000 lb
  • 4.56 rear axle ratio
  • Tandem differential locks
  • Lift axle regulator & gauge

BRAKES

  • Air brakes
  • Bendix front air disc brakes
  • Tandem rear air disc brakes
  • 6S/6M ABS
  • Tire pressure monitoring system

FUEL & ELECTRICAL

  • Dual aluminum fuel tanks – 160 gallons (110-gallon LH, 50-gallon RH tank)
  • 24-gallon DEF tank
  • 275-amp alternator
  • 3 PACCAR Premium batteries – 2,190 CCA
  • Engine block heater
  • DAVCO 382 fuel/water separator

WHEELS & TIRES

  • Front: Michelin 315/80R22.5, 20-ply
  • Rear: Michelin 11R24.5, 16-ply
  • Tri-axle wheel covers

CAB & SLEEPER

  • Peterbilt 44" sleeper cab
  • Platinum Sterling Gray interior
  • Sleeper heat & air conditioning
  • Heated power mirrors
  • Dark-tinted rear sleeper window
  • 7" infotainment display
  • Premium speaker package

JERR-DAN JD35/40 ROTATOR BODY

  • Tri-axle JFB rear body
  • 50" tall tunnel
  • JFB Gold storage package
  • Polished pylon dress-up kit
  • Boom dress-up kit
  • Front outriggers
  • Outrigger platforms
  • Hydraulic oil heater

ROTATOR BOOM

  • 3-stage hydraulic rotating main boom
  • Multiplex/electro-hydraulic controls
  • Wireless remote controls
  • Auxiliary boom winch
  • Hydraulic oil cooler/heater
  • Whelen under-boom work light

WINCHES

  • Dual Ramsey 35,000 lb main boom winches
  • Ramsey 15,000 lb auxiliary boom winch
  • Ramsey 50,000 lb underlift/drag winch

JERR-DAN 500LP 3-STAGE UNDERLIFT

  • 50,000 lb rated capacity – retracted
  • 17,000 lb rated capacity – extended
  • 80,000 lb tow capacity
  • 77" reach past tailboard – retracted
  • 147" reach past tailboard – extended
  • 10° positive tilt
  • 20° negative tilt
  • 3-stage hydraulic extension

UNDERLIFT & TOWING ATTACHMENTS

  • Spring forks
  • 7" tall fork adapter
  • Fifth-wheel attachment
  • 25,000 lb tire lift
  • Pintle hook
  • 2" ball
  • 2-5/16" ball
  • Underlift camera
  • Backup camera
  • Color-coded guides, hooks & handles

RECOVERY & RIGGING EQUIPMENT

  • Jerr-Dan 112" spreader bar – 40,000 lb capacity
  • Heavy-duty chain kit – Level 2
  • Shackle kit – Level 2
  • Loop sling kit – Level 2
  • Flat recovery strap kit
  • Snatch block kit
  • Telescopic ladder

STORAGE

  • Jerr-Dan Gold tri-axle tall-tunnel storage package
  • Ladder storage
  • Tool drawer
  • Shackle storage
  • Chain & chain-binder storage
  • Tow-light storage
  • Snatch-block storage
  • Bottle-jack storage
  • Long-tool storage
  • Base-body shelving
  • Tunnel storage

LIGHTING & CONTROLS

  • Wireless remote-control system
  • In-cab control panel
  • 72" Whelen LED lightbar
  • 22" Whelen LED wing lights
  • Upper & lower hookup lights
  • Upper work lights
  • Underlift lighting
  • Outrigger lighting
  • Whelen under-boom work light
  • 7-way trailer electrical connector
  • Emergency & service air glad hands
  • Backup alarm

JerrDan.com - JD35/40 ton rotator

Call For Pricing
(480) 999-0607

Description
  • Condition New
  • Year 2027
  • Make Truck - Peterbilt
  • Model 567
  • Truck Type Tow Truck - Wrecker
  • Capacity 40 Ton
  • Engine Cummins X15
  • Transmission Automatic
  • Drivetrain 8x4
  • Mileage 1,000 mi
  • Fuel Type Diesel
  • Suspension Air Ride
  • VIN 1NPCX4TX5VD837232
  • Stock Number T37232
