XL Specialized XL80 HDEM Hydraulic Detachable Extendable Mini Deck Trailer
The 2026 XL Specialized XL80 HDEM Hydraulic Detachable Extendable Mini Deck Trailer is purpose-built for hauling tall and heavy equipment that demands ultra-low deck height and flexible load positioning. Because this is a true mini deck trailer, it delivers exceptional ground clearance control while keeping overall transport height to a minimum.
At 53 feet closed and extending to nearly 60 feet, this extendable mini deck trailer adapts easily to changing load lengths. As a result, operators can handle a wider range of equipment without sacrificing balance or legal weight distribution. The trailer is rated at 80,000 lbs distributed capacity, and when extended, it supports 30,000 lbs in both the front and rear extension areas, providing confidence for long or irregular loads.
Additionally, the hydraulic detachable gooseneck allows fast, ground-level loading, which improves efficiency on job sites. Meanwhile, the low 14-inch loaded deck height and formed crossmembers enhance stability for taller machinery. Built by XL Specialized, the XL80 HDEM combines rugged construction with smart engineering for serious heavy-haul applications.
Ultimately, this hydraulic detachable extendable mini deck trailer is an ideal solution for contractors and haulers who need low deck height, high capacity, and the flexibility of an extendable platform — all in one premium trailer.
TRAILER MODEL
- XL Specialized XL80 HDEM (Hydraulic Detachable Extendable Mini-Deck)
TRAILER DIMENSIONS & CAPACITY
- Length: 53'
- Width: 102"
- Capacity: 80,000 lbs disbributed closed, 80,000 lbs in 16' closed, 30,000 lbs in 5' front & rear of deck fully extended - 60,000 lbs total

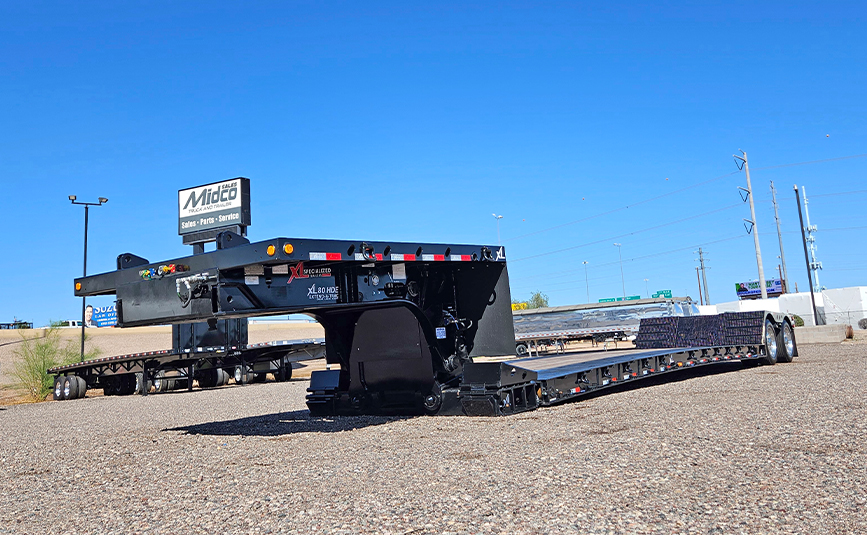

GOOSENECK

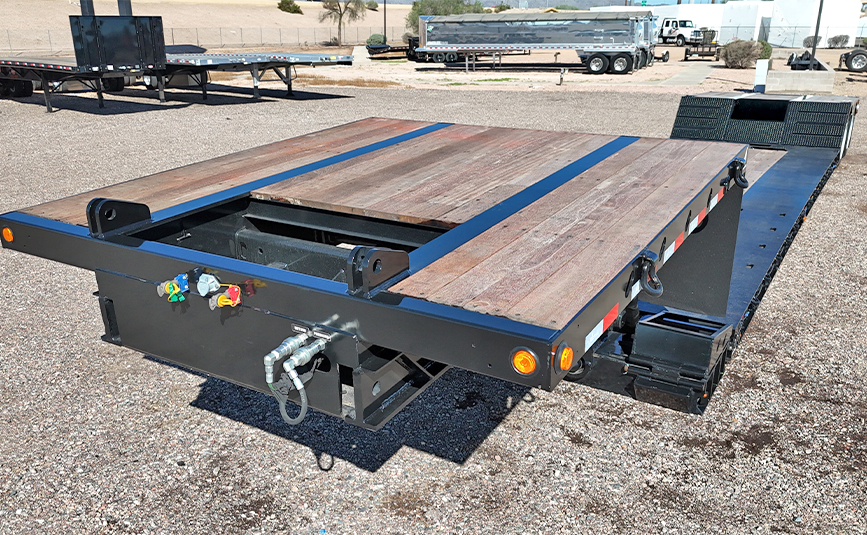

- Full width neck
- Hydraulic detachable
- Apitong decking
- Length: 10'5"
- Swing clearance: 84"
- 5th wheel height: 84"
- King pin setting: 84"
- Hydraulics: 13HP pony motor, dual hydraulics, aluminum cover
- Prepped for optional flip neck
MAIN DECK

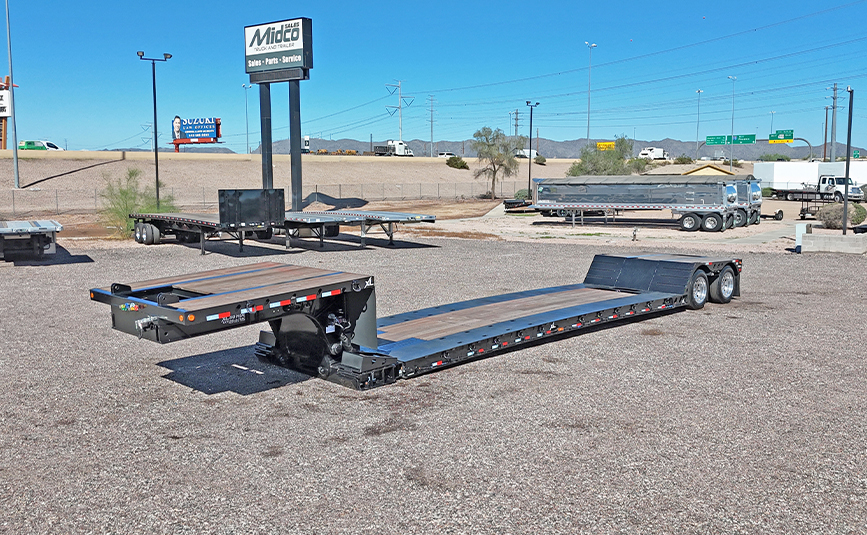

- Length: 33'3" closed, extending to 59'8" (extends from front), extension stops on 24" centers
- Loaded deck height: 14"
- Ground clearance 4"
- Apitong decking
- 31" front flip ramps
- Formed crossmembers on 24" centers
- 10" fabricated beams
- 11 bent D-rings per side
- Keyslot chain drops

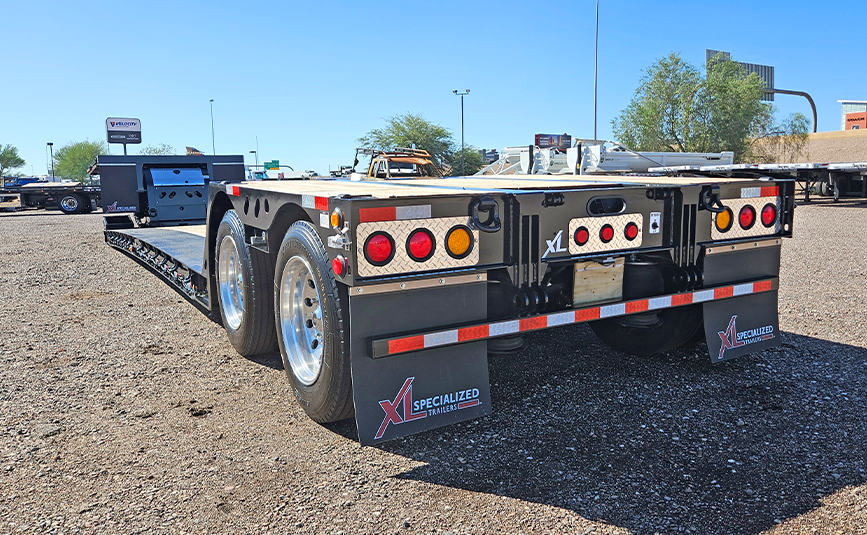

REAR DECK
- Length: 9'4", 55 degree slope
- Loaded deck height: 40"
- Pan style D-rings in corners; 2 bent D-rings in tail channel
- Flag holders
- Prepp-ed for optional flip axle
AXLES & SUSPENSION
- Tandem axles
- Suspension: Hendrickson 25k air ride suspension
- Axle spacing: 54"
- Manual ride height control
- ABS: 4S2M w/ spring brakes
- Brakes: 16 1/2" x 7"
- Drums: outboard
- Liquid filled air guage
WHEELS & TIRES
- Tires: 25570R22.5
- Wheels: polished aluminum outers, steel inners
LIGHTING & ELECTRICAL
- 2 additional clearance lights per side
- 3 tail light aluminum package
- 4" amber strobe, to be used as 3rd tail light
- 40 ton capacity
- 53' x 102"
- Air Ride Suspension
- Aluminum Outer Wheels
- Extendable
- Heavy Haul Trailer
- Hydraulic detachable gooseneck
- Nationwide Delivery
- Pony Motor
- Tandem axle
- Toolbox
- Variable ride height
