2026 Alpha HD A80HDGC-E Extendable Lowboy

  • Trailer - Alpha HD
  • A80HDGC
  • Lowboy
Call (480) 999-0607 For Availability

Overview

2026 Alpha HD A80HDGC-E 48′ Extendable Lowboy Trailer – Hydraulic Detachable Neck & 40-Ton Capacity

The 2026 Alpha HD A80HDGC-E Extendable Lowboy Trailer is built to tackle your toughest commercial hauling challenges. Measuring 48 feet in length, this heavy-duty trailer features an extendable main deck that stretches from 28'7" to 50 feet, allowing you to transport long or oversized equipment with precision and control.



Equipped with a hydraulic detachable gooseneck and a powerful Honda pony motor this trailer is designed for efficient loading and versatility. Additionally, its 40-ton capacity (80,000 lbs in 16') ensures that it can handle demanding loads without compromising safety or stability.



Thanks to its low 20-inch deck height, 6-inch ground clearance, and Cush air ride suspension, this trailer delivers a smooth ride even over uneven terrain. The Apitong flush decking, removable outriggers, and air-operated lock pins make it both durable and adaptable.



Whether you’re hauling construction equipment, machinery, or long freight, this Alpha HD lowboy trailer provides the strength, flexibility, and features that professionals demand.



Midco Sales is the Alpha HD trailer dealer in AZ.



Alpha HD extendable lowboy trailer for Sale

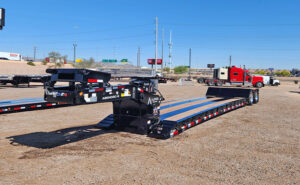

Alpha HD extendable lowboy trailer

DIMENSIONS & CAPACITY

  • Length: 48' (closed)
  • Width: 102"
  • Capacity: 80,000 lbs, 80,000 lbs in 16' closed



GOOSENECK

  • Hydraulic detachable gooseneck
  • 10'5" length
  • Honda pony motor w/ stainless lid
  • 3' flip neck
  • 49" 5th wheel height
  • 15" king pin setting
  • 80" swing clearance
  • 1 bent D-rings per side
  • 5 position ride height
  • Stainless mudflaps
  • LED work lights
  • Additional clearance lights



MAIN DECK

  • Length: 28'7" closed, expanding to 50' open (lockable every 2')
  • Air Operated Lock Pin, Deck opens every 2'
  • 14" fabricated I-beams
  • 20" loaded deck height
  • 6" ground clearance
  • 6"/4" JRI Beam Cross Members ALT on 12" Centers
  • 8 Bent D-Rings per Side
  • Chain Slots on 24" Centers each side
  • 1 1/8" Apitong Flush Decking-Full Width
  • Front Ramps tpaered to 4" W/Traction Bars
  • Removable Swingout Outriggers
  • 2' rear platform w/ lockable toolboox at rear of deck
  • Additional clearance lights



REAR DECK/FRAME

  • 9' length
  • 40" Loaded Deck Height
  • Full Width Decking - 1 1/8" Apitong
  • 1 Pair Flag Holders
  • 1 pair Stake Pockets in Tail Channel
  • Two Pair of Chain Drops in Center
  • One Pair of Pan D-Rings at Rear
  • Frame Reinforcement for optional Flip Axle
  • Additional clearance lights
  • 4" amber strobe light
  • Additional tail light



AXLES & SUSPENSION

  • 2 - 25,000 lb Axles
  • Cush Air Ride Suspension-25K
  • 54" Axle Spacing
  • 16 1/2" x 7" Drum Brakes
  • 4S2M ABS
  • Spring Brakes on Both Axles
  • Raise & Lower Valve
  • Manual Ride Height Control
  • Airweigh Quickweigh Scale



WHEELS & TIRES

  • 255/70R22.5 Tires
  • 8.25 x 22.5 aluminum outer Wheels



LIGHTING

  • 2 Pr. Side Markers/ 1 Pr. Mid-Turns in Deck
  • Grote Ultra Blue-Seal Wire Harness
  • Strobe lights

  • 40 ton capacity
  • 48' x 102"
  • Air Ride Suspension
  • Aluminum Outer Wheels
  • Extendable
  • Hydraulic detachable gooseneck
  • Pony Motor
  • Tandem axle
  • Toolbox
  • Variable ride height
  • Warranty
Description
  • Condition New
  • Year 2026
  • Make Trailer - Alpha HD
  • Model A80HDGC
  • Trailer Type Lowboy
  • Length 48'
  • Construction Steel
  • Capacity 40 Ton
  • Axles Tandem
  • Suspension Air Ride
