TRAILER MODEL

Alpha HD A110HDG-SF-18

TRAILER DIMENSIONS & CAPACITY

• Length: 53'
• Width: 102"
• Capacity: 110,000 lbs

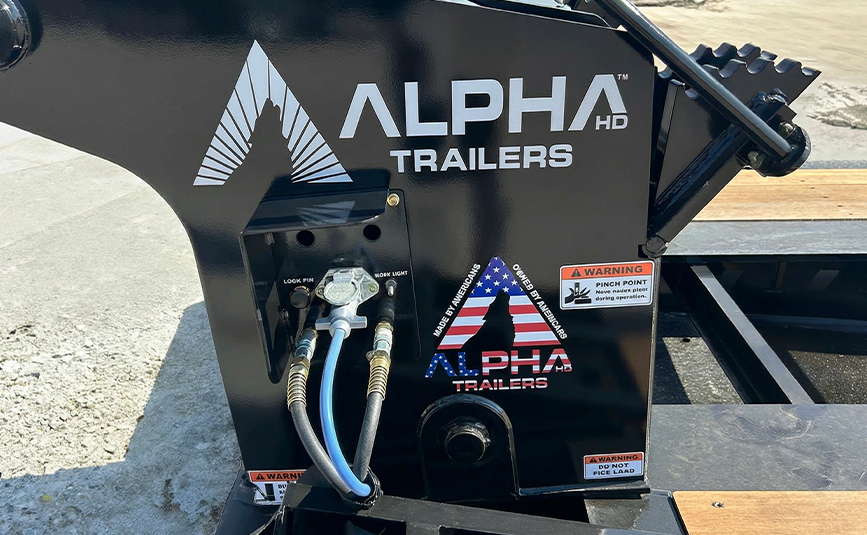

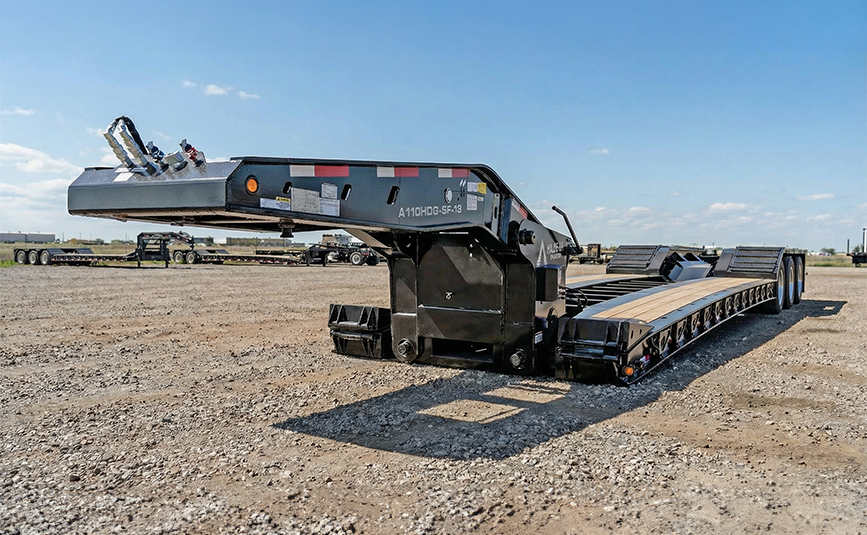

GOOSENECK

• Hydraulic detachable gooseneck
• Length: 12' 11"
• Fifth wheel height: 51"
• King Pin: 15" & 41"
• Swing Clearance: 110" & 84"
• 5 position ride height
• Dual hydraulics - Honda 13HP pony motor
• Air operated lock pin
• LED work lights

MAIN DECK

• Length: 26'
• Ground clearance: 6"
• Loaded deck height: 18"
• 1 3/4" apitong deck
• 12" fabricated I-Beams
• 12" crossmember spacing (6")
• Swing-out outriggers
• 2 sets of removable flat back ougriggers
• Chain drops on 24" centers
• 7 bent D-rings per side
• Toolbox at front with 2 bent D-rings
• 6' bucket well at rear with pair bent D-rings
• Top flange reinforocement
• Front flip ramps

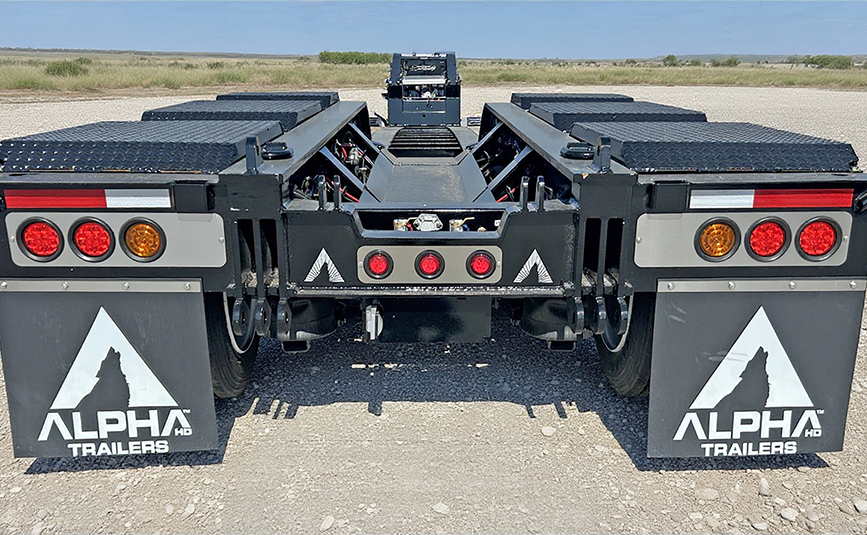

REAR DECK

• Length: 14" 1"
• Loaded deck height: 39"
• 32 degree rear transition w/ 4' rise to transition
• Covered boom trough
• Chain slots in each bolster
• 2 flat D-rings at rear
• Flag holders
• Stake pockets in tail channel
• Frame reinforcement for optional single axle stinger (3+1 capable)
• 3rd tail light package w/ strobe light (battery backup)

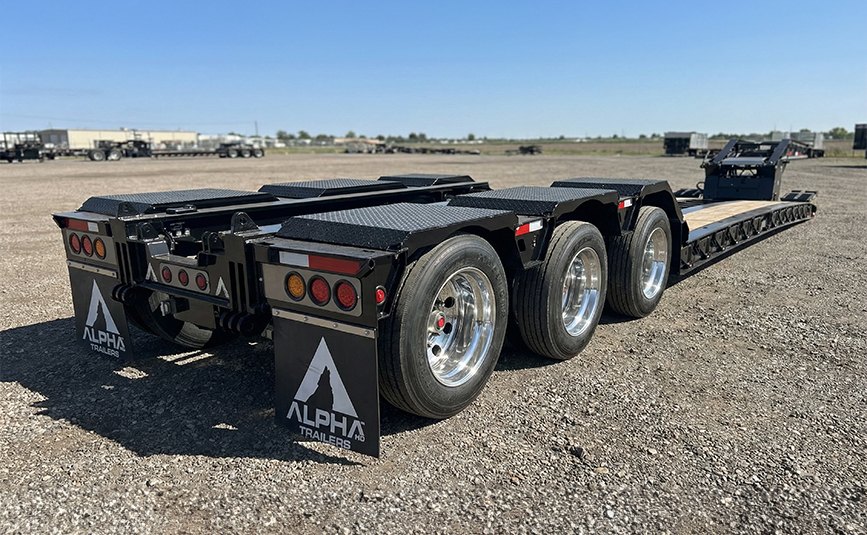

WHEELS & TIRES

• 255/70R22.5 Tires
• Polished aluminum outer wheels

AXLES & SUSPENSION

• Ridewell air ride suspension
• 3 25,000 lb axles
• 54 1/2' axle spacing
• 16 1/2" x 7" Drum Brakes
• Spring Brakes on Two Axles

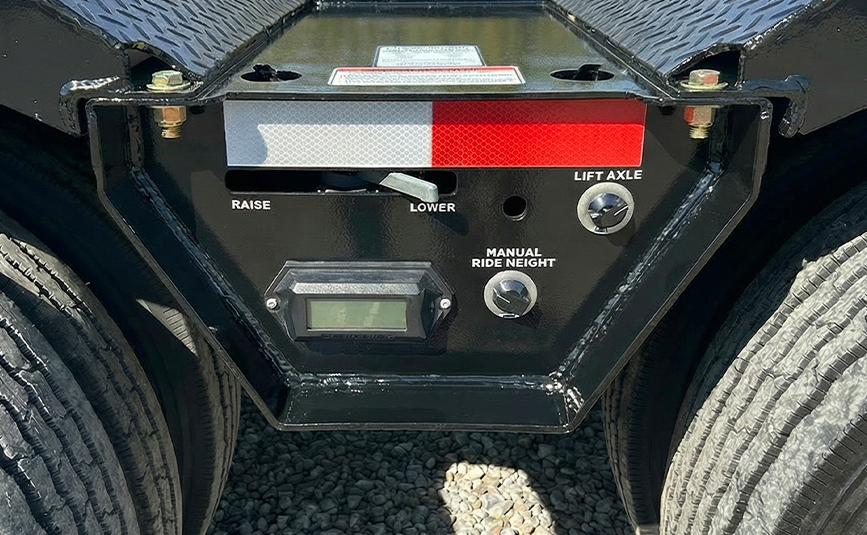

• Raise & Lower Valve
• Manual Ride Height Control
• Air Lift on 3rd Axle
• Airweigh Quickweigh Scale
• Suspension Control in Bolster
