2022 XL Specialized XL80 MFGA

  • Trailer - XL Specialized
  • XL80 MFG
  • Double Drop
$83,968.99

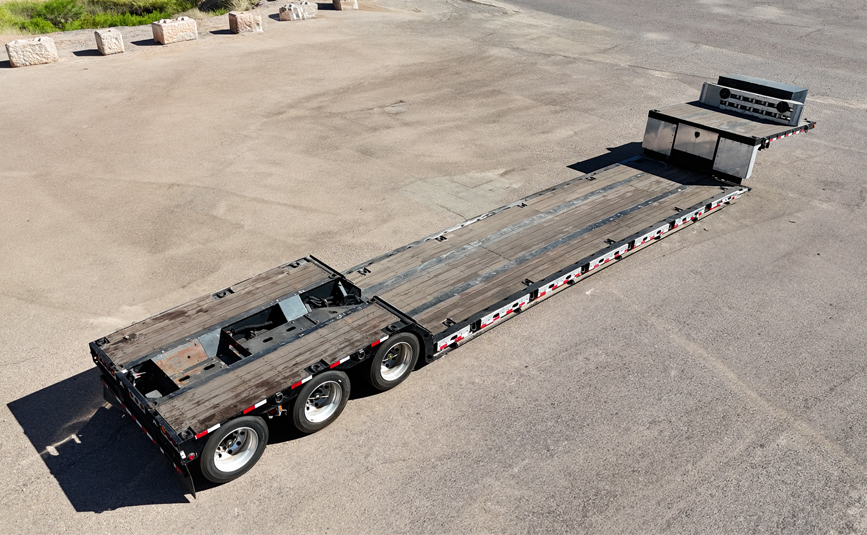

Used XL Specialized XL80 MFGA Double Drop Trailer – 53′, 80,000 lb Capacity

This 2022 XL Specialized XL80 MFG double drop trailer is built for heavy-haul jobs that demand strength, stability, and versatility. Measuring 53 feet long and 102 inches wide, this trailer offers an 80,000 lb distributed capacity (40 tons) and can handle 70,000 lbs in just 16 feet. With these ratings, it is well-suited for moving oversized and concentrated loads.



The trailer features a mechanical detachable full-width neck that makes loading and unloading equipment more efficient. Because the main deck is 30’2” long with a loaded deck height of only 18 inches, it allows operators to haul tall loads while staying within height restrictions. In addition, the rear deck measures 12’10” and offers a 40-inch loaded deck height for added flexibility.



To improve load support, this XL Specialized trailer includes aluminum pull-out outriggers, chain drops, and pull-out ramps on the front transition. These features make it easier to handle wide and varied equipment. Meanwhile, the tri-axle suspension with a 3rd axle lift and Hendrickson air ride suspension help balance heavy loads and improve ride quality.



This used double drop has been recently serviced with new brakes on the 3rd axle and new S-cam bushings. Even more, it has already passed a recent DOT annual inspection, so it is ready to work immediately.



If you’re searching for a reliable used XL Specialized double drop trailer for sale, this XL80 MFG model delivers proven performance, solid build quality, and the load capacity needed for demanding hauls.

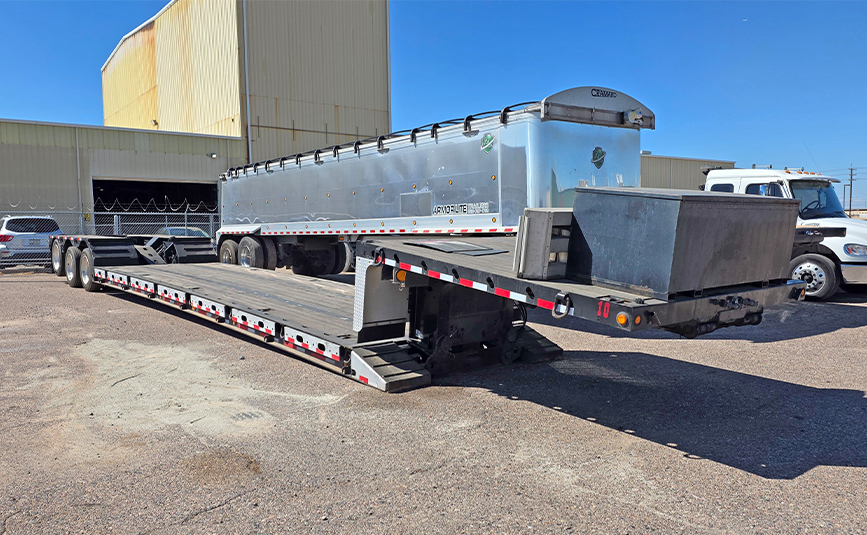

2022 xl specialized xl80 mfg double drop trailer - 03 - front angled view
XL Specialized XL80 MFGA - used double drop trailer

TRAILER MODEL

  • XL Specialized XL80 MFGA

DIMENSIONS & CAPACITY

  • Length: 53'
  • Width: 102"
  • Capacity: 80,000 lbs (40 tons) distributed, 70,000 lbs in 16'
  • Weight: 19,496 lbs (approx)

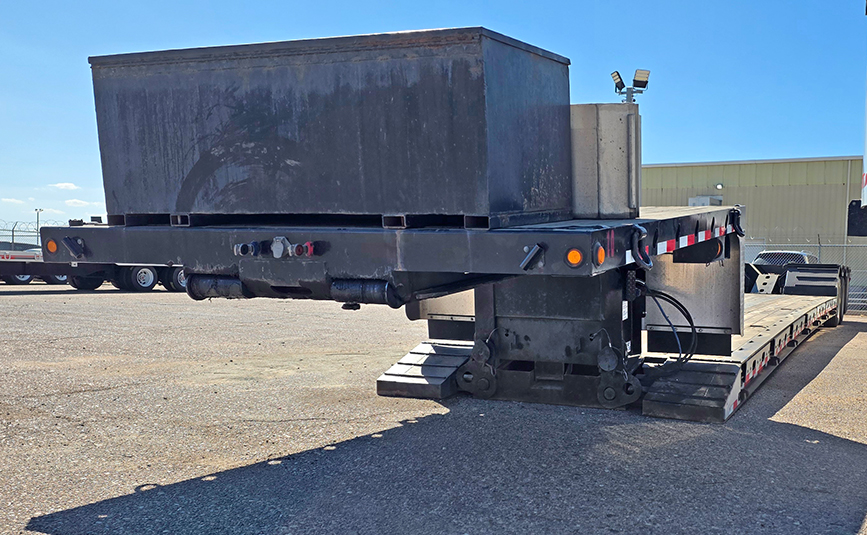

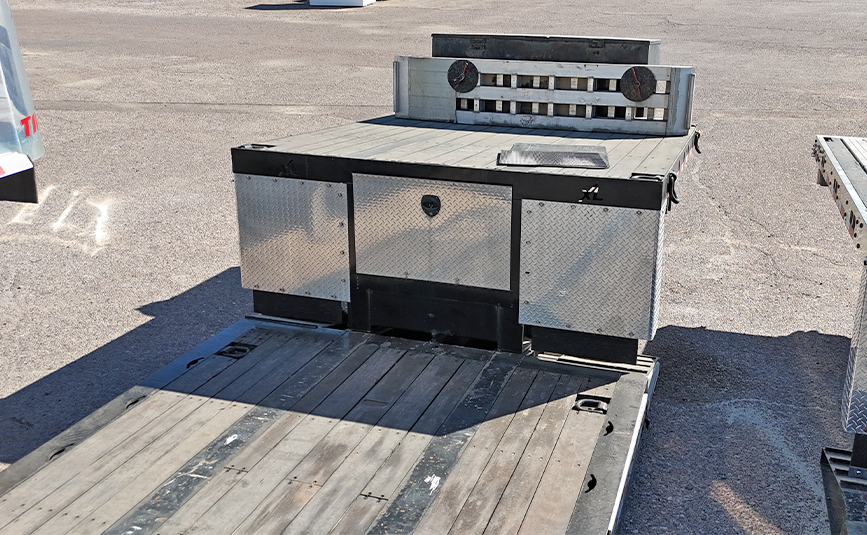

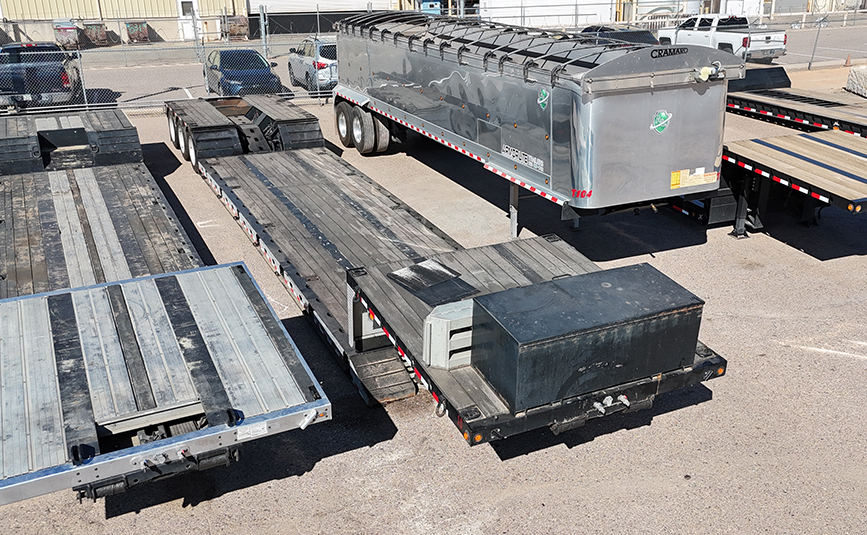

GOOSENECK

  • Full width neck, mechanical detachable
  • Length: 10'
  • Kingpin setting: 16"
  • Swing clearance: 84"
  • 5th Wheel height: 49"
  • D-rings

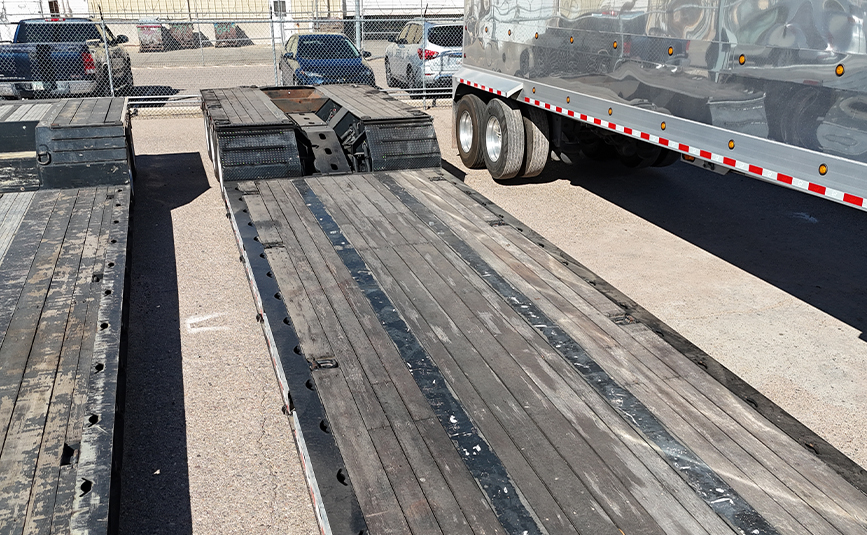

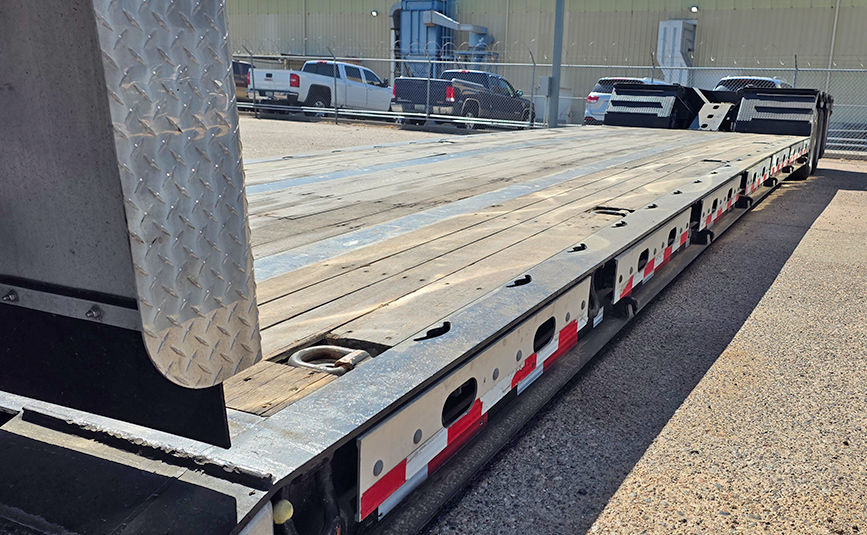

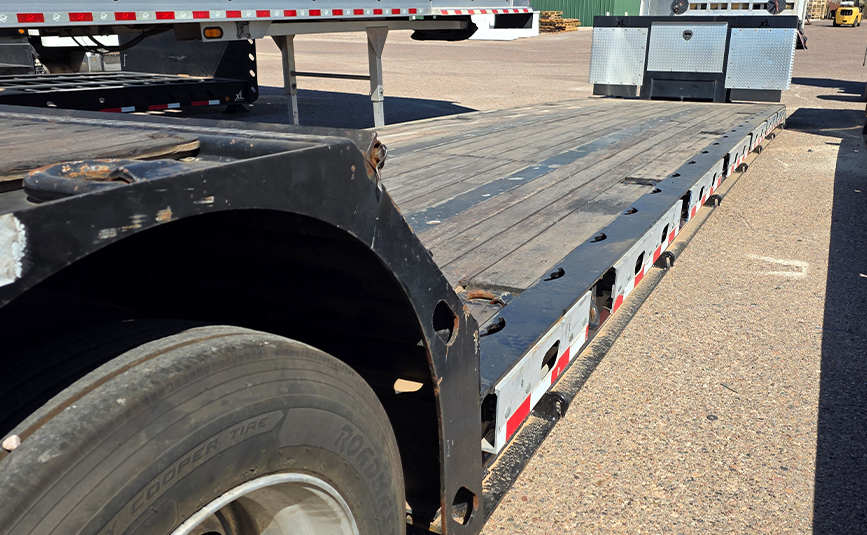

MAIN DECK

  • Length: 30'2"
  • Loaded deck height: 18"
  • Ground clearance: 6"
  • Apitong deck
  • D-rings, Chain drops
  • Aluminum pull-out outriggers

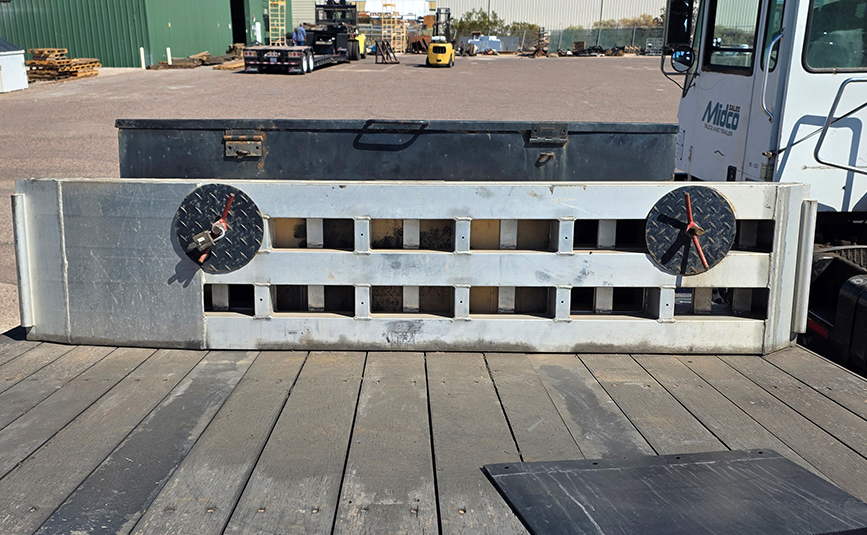

  • Aluminum pull-out ramps on front transition.

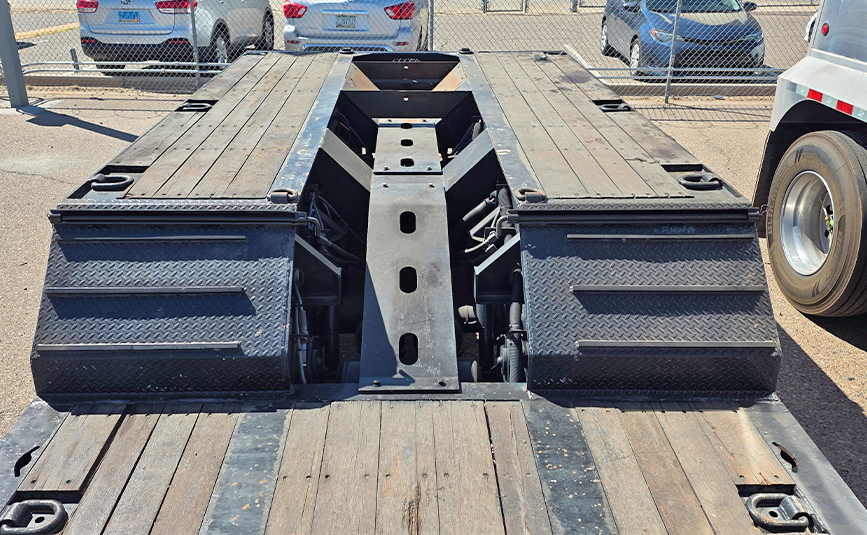

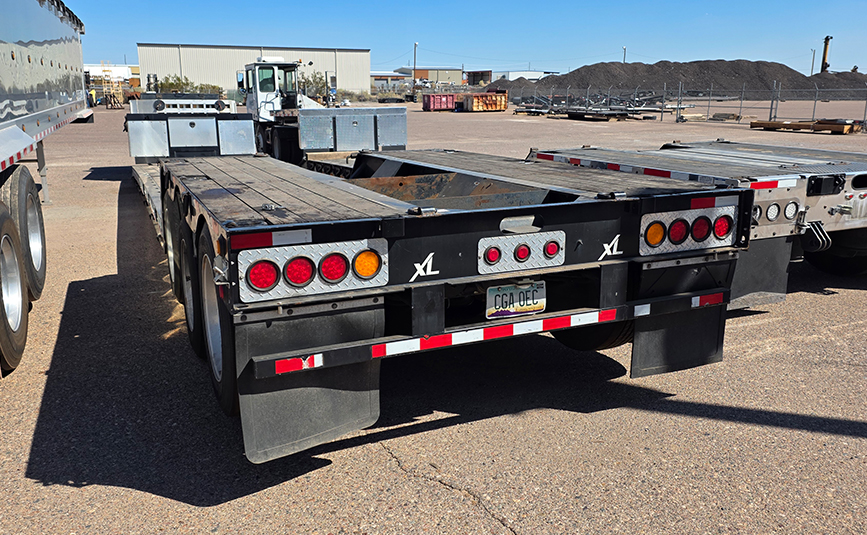

REAR DECK

  • Length: 12'10"
  • Loaded deck height: 40"

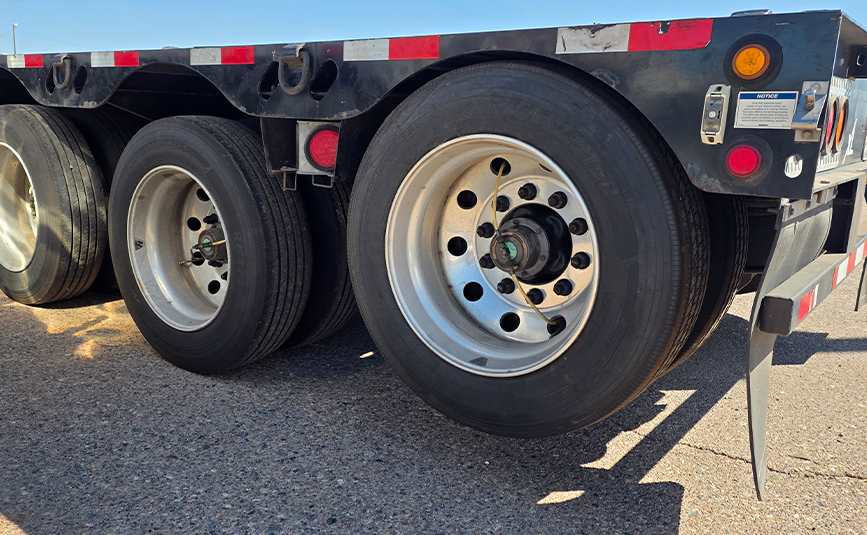

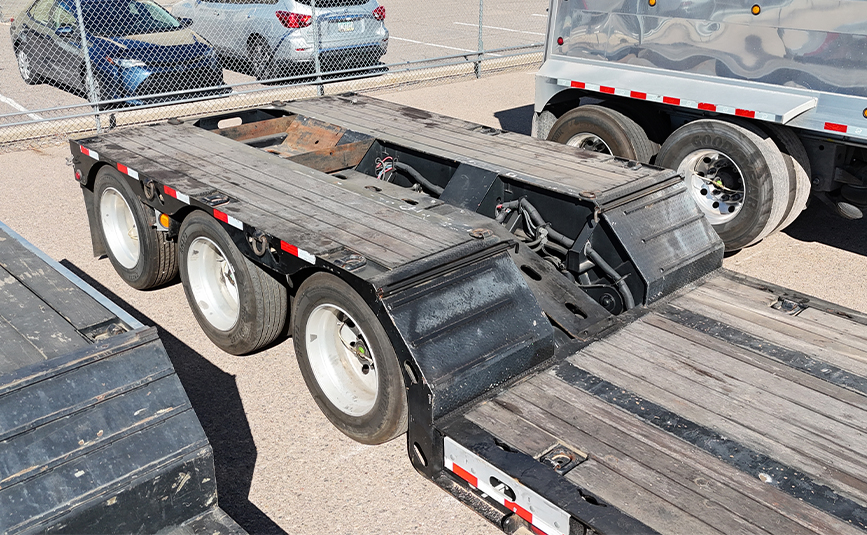

AXLES & SUSPENSION

  • Tri-axle w/ 3rd axle lift
  • Hendrickson air ride suspension
  • New brakes on 3rd axle
  • New S cam bushings
  • Liquid-filled air gauge
  • Manual ride height control

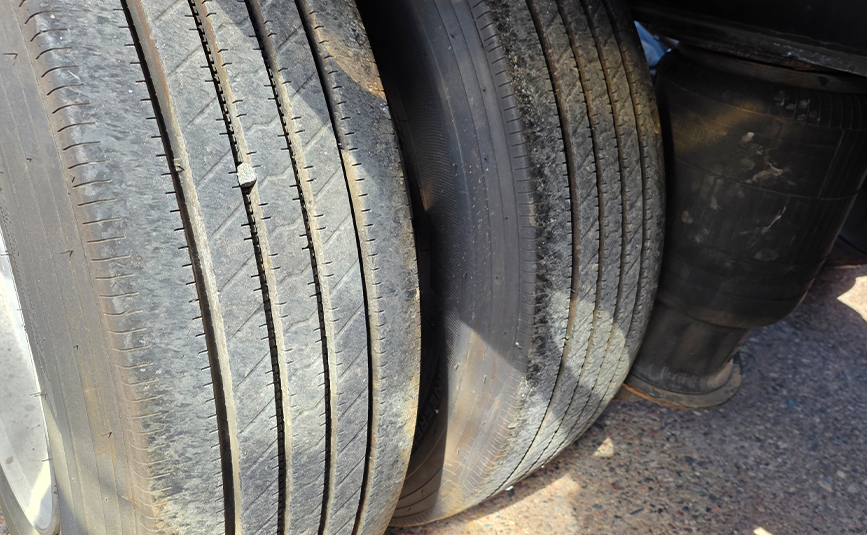

WHEELS & TIRES

  • Polished aluminum outer wheels, milled aluminum inners
  • 255/70R22.5 tires
  • PSI tire inflation

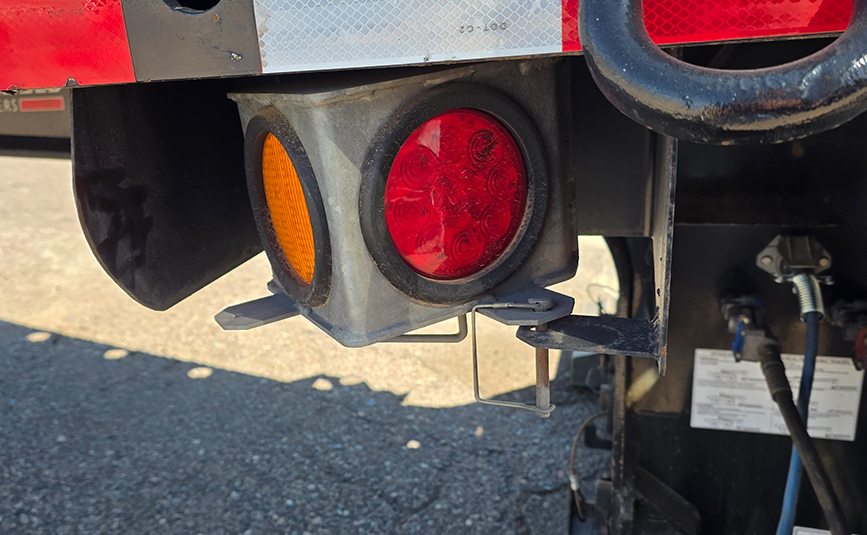

LIGHTING

  • 12V Grote LED lighting
  • 4 tail light aluminum package
  • 4 clearance lights/side
  • Pull-out lights in front and rear deck
  • 40 ton capacity
  • 53' x 102"
  • Air Ride Suspension
  • Aluminum Outer Wheels
  • Aluminum wheels
  • Mechanical detachable neck
  • Nationwide Delivery
  • PSI tire inflation
  • Ramps
  • Toolbox
  • Variable ride height
Description
  • Condition Used
  • Year 2022
  • Make Trailer - XL Specialized
  • Model XL80 MFG
  • Trailer Type Double Drop
  • Length 53'
  • Construction Steel
  • Capacity 40 Ton
  • Axles Tri Axle
  • Suspension Air Ride
  • VIN 4U3J05330NL020817
  • Stock Number L20817
